Nguồn Meanwell AD-155B

Categories: AD series, AD-155, Bộ Nguồn Meanwell Sạc Ắc Quy - UPS

Description
Reviews (0)

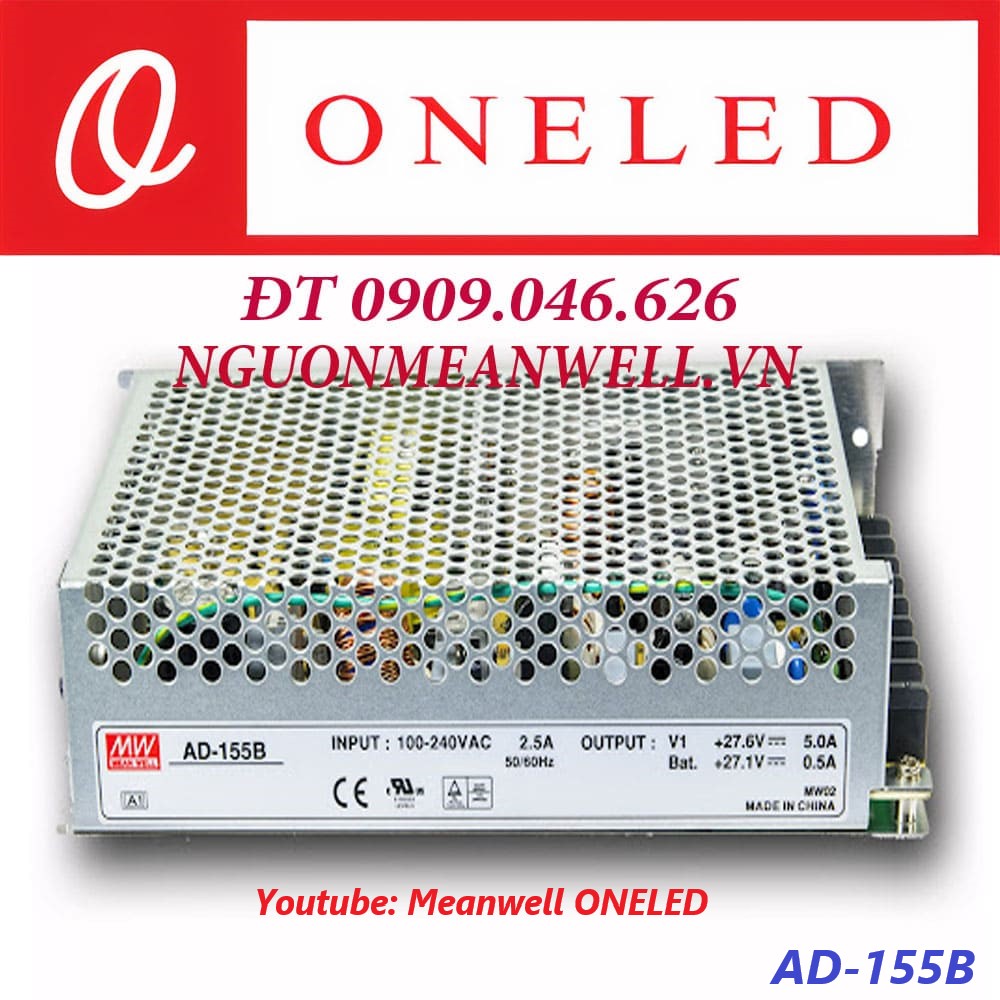

Meanwell AD-155B Power Supply

Nguồn Meanwell AD-155B

Tính Năng:

• Universal / Full Range AC Input
• Protection: Short circuit / Overload / Overvoltage
• Ultra low and low battery protection
• Free air convection cooling
• 100% full load write test
• fixed switching frequency at PFC 67KHz, PWM 134KHz

Thông số chi tiết về sản phẩm

Model		AD-155A		AD-155B		AD-155C
OUPUT	OUTPUT NUMBER	CH1	CH2	CH1	CH2	CH1	CH2
	DC VOLTAGE	13.8V	13.3V	27.6V	27.1V	54V	53.5V
	RATED CURRENT	10.5A	0.5A	5A	0.5A	2.7A	0.2A
	CURRENT RANGE Note.6	0 ~ 12.5A	0 ~ 3A	0 ~ 5.5A	0 ~ 0.5A	0 ~ 2.7A	0 ~ 0.5A
	RATED POWER Note.6	151.55W		151.55W		156.5W
	RIPPLE & NOISE (max.) Note.2	150mVp-p		150mVp-p		240mVp-p
	VOLTAGE ADJ.RANGE	CH1: 12 ~ 14.5V		CH1: 24 ~ 29V		CH1: 48 ~ 58V
	VOLTAGE TOLERANCE Note.3	±2.0%		±1.0%		±1.0%
	LINE REGULATION Note.4	±0.5%		±0.5%		±0.5%
	LOAD REGULATION Note.5	±0.5%		±0.5%		±0.5%
	SETUP, RISE TIME	1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load
	HOLD UP TIME (Typ.)	24ms/230VAC 20ms/115VAC at full load
INPUT	VOLTAGE RANGE	88 ~ 264VAC 124 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF>0.92 at full load
	EFFICIENCY (Typ.)	80.00%		84%		84%
	AC CURRENT (Typ.)	2.5A/115VAC 1.5A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 23A/115VAC 45A/230VAC
	LEAKAGE CURRENT	<1mA/240VAC
