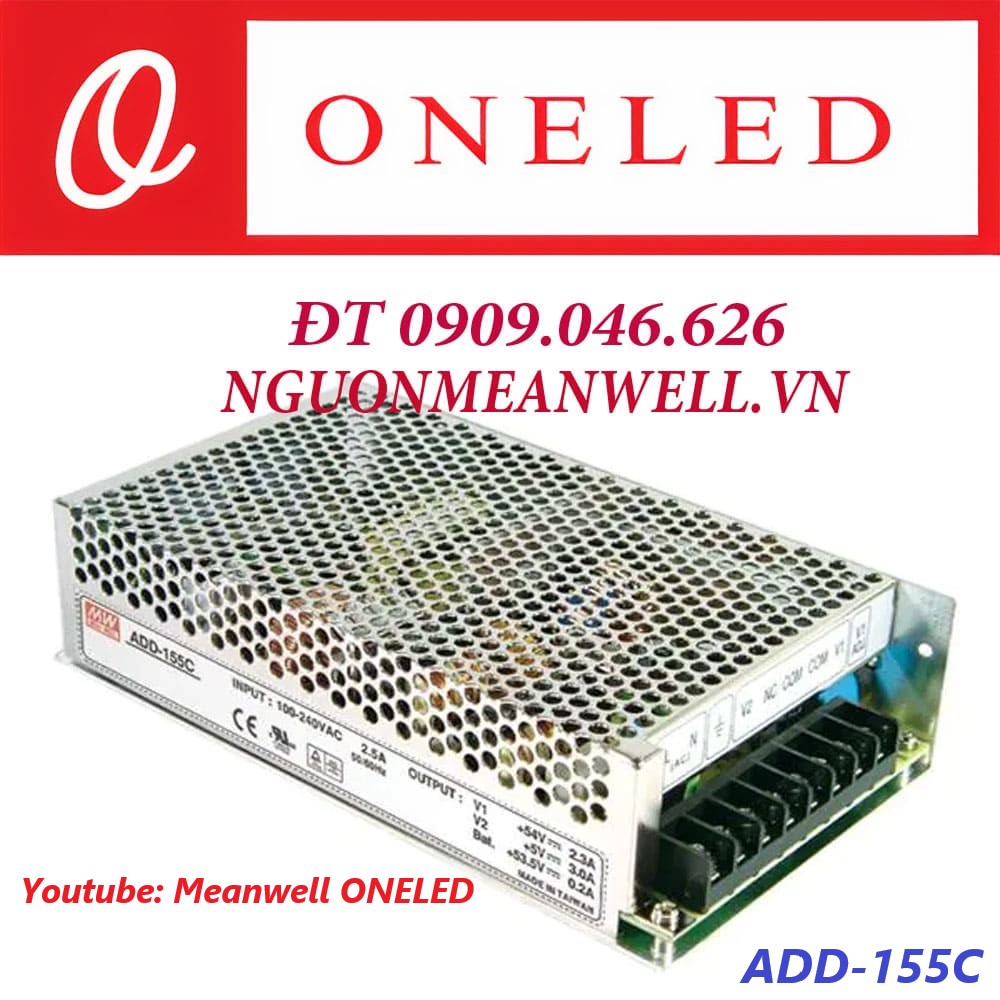

Meanwell ADD-155C Power Supply

Nguồn Meanwell ADD-155C

Tính Năng:

• Universal / Full Range AC Input
• Built-in active PFC function
• Protection: Short circuit / Overload / Overvoltage
• Ultra low and low battery protection
• Free air convection cooling
• 100% full load write test
• fixed switching frequency at PFC 67KHz, PWM 134KHz

Thông số chi tiết về sản phẩm

Model		ADD-155A			ADD-155B			ADD-155C
OUPUT	OUTPUT NUMBER	CH1	CH2	CH3	CH1	CH2	CH3	CH1	CH2	CH3
	DC VOLTAGE	13.8V	5V	13.3V	27.6V	5V	27.1V	54V	5V	53.5V
	RATED CURRENT	9.5A	3A	0.5A	4.5A	3A	0.5A	2.3A	3A	0.2A
	CURRENT RANGE Note.6	0 ~ 10.5A	0 ~ 3A		0 ~ 5A	0 ~ 3A		0 ~ 2.5A	0 ~ 3A
	RATED POWER Note.6	152.75W			152.75W			149.9W
	RIPPLE & NOISE (max.) Note.2	150mVp-p	100mVp-p		200mVp-p	100mVp-p		240mVp-p	100mVp-p
	VOLTAGE ADJ.RANGE	CH1: 12 ~ 14.5V			CH1: 24 ~ 29V			CH1: 48 ~ 58V
	VOLTAGE TOLERANCE Note.3	±2.0%	±3.0%		±1.0%	±3.0%		±1.0%	±5.0%
	LINE REGULATION Note.4	±1.0%	±0.5%		±1.0%	±0.5%		±1.0%	±0.5%
	LOAD REGULATION Note.5	±1.0%	±0.2%		±1.0%	±2.0%		±1.0%	±2.0%
	SETUP, RISE TIME	1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load
	HOLD UP TIME (Typ.)	24ms/230VAC 20ms/115VAC at full load
INPUT	VOLTAGE RANGE	88 ~ 264VAC 124 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF>0.92 at full load
	EFFICIENCY (Typ.)	78.00%			81%			81%
	AC CURRENT (Typ.)	2.5A/115VAC 1.5A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 23A/115VAC 45A/230VAC
	LEAKAGE CURRENT	<1mA/240VAC
