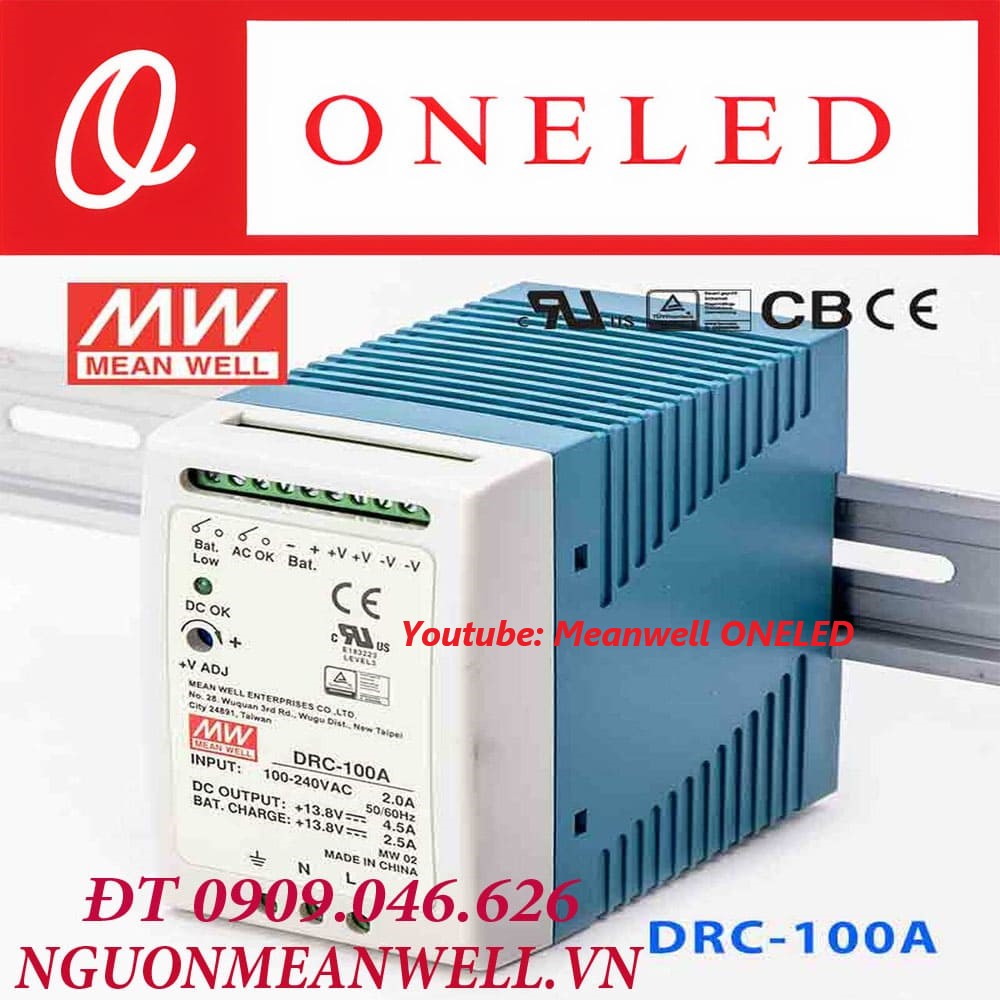

Meanwell DRC-100A Power Supply

Nguồn Meanwell DRC-100A

Tính Năng:

• Universal / Full Range AC Input
• Protection: Short circuit / Overload / Over voltage
• Low battery protection / Battery reverse polarity protection by fuse
• Can be installed on DIN rail TS-35/7.5 or 15
• Alarm signal for AC OK and Low battery (via relay)
• Free air convection cooling
• LED indicator for power on
• 100% full load write test

Các Ứng Dụng:

• Security system
• Emergency lighting system
• Alarm system
• DC UPS system
• Central monitoring system
• Access system

Mô Tả về sản phẩm

The DRC-100 is a 96W AC/DC DIN rail security power supply family. In addition to the main output, there is a charger output with a smaller rated current, allowing the application to provide the backup power required by secure access systems. The DRC-100 accepts common inputs between 90VAC and 264VAC and provides 13.8VDC and 27.6VDC at the output, respectively. With efficiency up to 89%, it can work with air convection cooling below -30% to 70%. In addition to the main protection features such as overload protection, overvoltage protection, low battery cut-off and battery reverse protection (by fuse), alarm signals for AC OK and low battery indication are provided, through the relay contact output, to facilitate system design.

Thông số chi tiết về sản phẩm

Model		DRC-100A		DRC-100B
OUPUT	OUTPUT NUMBER	CH1	CH2	CH1	CH2
	DC VOLTAGE	13.8V	13.8V	27.6V	27.6V
	RATED CURRENT	4.5A	2.5A	2.25A	1.25A
	CURRENT RANGE	0 ~ 7A		0 ~ 3.5A
	RATED POWER	96.6W		96.6W
	RIPPLE & NOISE (max.) Note.2	120mVp-p		240mVp-p
	VOLTAGE ADJ. RANGE	CH1:12 ~ 15V		CH1:24 ~ 30V
	VOLTAGE TOLERANCE Note.3	±1.0%		±1.0%
	LINE REGULATION	±0.5%		±0.5%
	LOAD REGULATION	±0.5%		±0.5%
	SETUP, RISE TIME	2400ms,50ms/230VAC 2400ms,50ms/115VAC at full load
	HOLD UP TIME (Typ.)	50ms/230 10ms/115VAC at full load
INPUT	VOLTAGE RANGE	85 ~ 264VAC 120 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)]
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	87%		89%
	AC CURRENT (Typ.)	1.8A/115VAC 1.1A/230VAC
	INRUSH CURRENT (Typ.)	COLDS TART 30A/115VAC 60A/230VAC
