Meanwell ESC-120-13.5 Power Supply
Nguồn Meanwell ESC-120-13.5
Tính Năng:
• AC input range selected by switch
• Protection: Short circuit / Overload / Over voltage / Over temperature
• Battery under/Overvoltage and polarity protection (ECS only)
• Forced air cooling with built-in DC fan (240V only)
• Fixed switching frequency at 25KHz
• 3-color LED load indicator
Thông số chi tiết về sản phẩm
| Model | ESC/ESP-120 | ESC/ESP-240 | |||||
| OUPUT | DC VOLTAGE | 13.5V | 27V | 54V | 13.5V | 27V | 54V |
| RATED CURRENT | 8A | 4A | 2A | 16A | 8A | 4A | |
| CURRENT RANGE | 0 ~ 8A | 0 ~ 4A | 0 ~ 2A | 0 ~ 16A | 0 ~ 8A | 0 ~ 4A | |
| RATED POWER | 108W | 108W | 108W | 216W | 216W | 216W | |
| RIPPLE & NOISE (max.) | 120mVp-p | 150mVp-p | 400mVp-p | 120mVp-p | 150mVp-p | 400mVp-p | |
| VOLTAGE ADJ. RANGE | 12 ~ 15V | 24 ~ 30V | 48 ~ 56V | 12 ~ 15V | 24 ~ 30V | 48 ~ 56V | |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±2.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±1.0% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2.0% | ±1.0% | ±0.5% | ±2.0% | ±1.0% | ±0.5% | |
| SETUP, RISE TIME | 200ms, 100ms at full load | 200ms, 100ms at full load | |||||
| HOLD UP TIME (Typ.) | 36 ms at full load | 30ms at full load | |||||
| INPUT | VOLTAGE RANGE Note.4 | 88 ~ 132VAC/176 ~ 264VAC selected by switch 249 ~ 370VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY (Typ.) | 81% | 83% | 84% | 81% | 84% | 85% | |
| AC CURRENT (Typ.) | 3A/115VAC 1.5A/230VAC | 4.5A/115VAC 2.5A/230VAC | |||||
| INRUSH CURRENT (Typ.) | COLD START 40A | ||||||
| LEAKAGE CURRENT | <3.5mA/240VAC | ||||||
| PROTECTION | OVER LOAD | 105% ~ 135% rated output power | |||||
| Protection type: Fold back current limiting, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 15.5 ~ 18.2V | 31 ~ 36.5V | 62.1 ~ 72.9V | 15.5 ~ 18.2 | 31 ~ 36.5V | 62.1 ~ 72.9V | |
| Protection type: Constant voltage limiting, recovers automatically after fault condition is removed | |||||||
| OVER TEMPERATURE | RTH5≥80⁰C Detect on heatsink of Q1, Q2 power transistor | RTH5≥85⁰C Detect on heatsink of Q1, Q2 power transistor | |||||
| Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | |||||||
| BATTERY | ESC series with bat. Polarity, bat. Under voltage, bat. Over voltage protection | ||||||

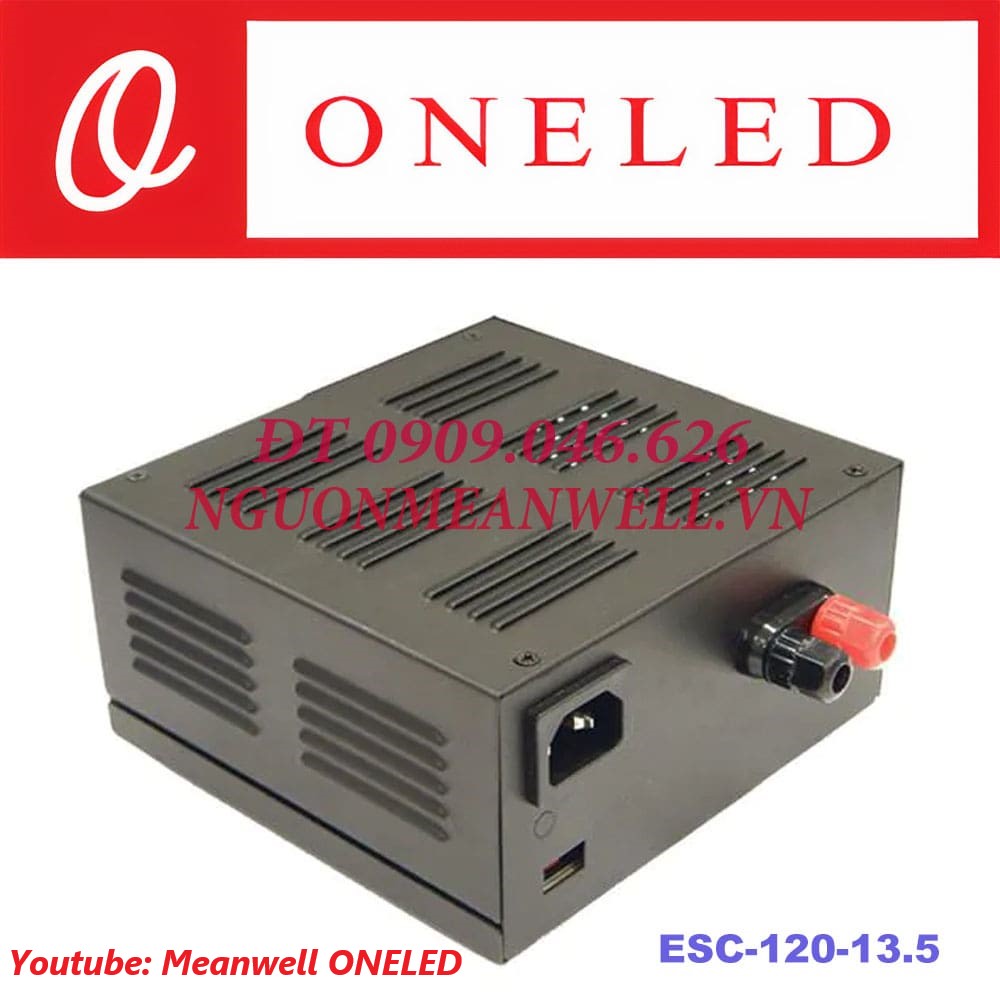

Hình Ảnh về Nguồn Meanwell ESC-120-13.5

Tags: click vào ký tự bên dưới để được chuyển trực tiếp đến Những sản phẩm liên quan Nguồn Meanwell ESC-120-13.5 nhanh nhất !!!
ESC-120-27
ESC-120-54
Để biết thêm chi tiết về sản phẩm vui lòng liên hệ với chúng tôi để biết thêm những sản phẩm liên quan và tương đương !!!
Để Tải FULL tài liệu Xin truy cập vào Website hoặc click tại đây: www.nguonmeanwell.vn để xem đầy đủ Catalgoue – Spec sản phẩm nguồn tương ứng
Để xem thêm nhiều Videos thực tế các sản phẩm Nguồn Meanwell chính hãng khác có thể Truy cập vào đường link Youtube bên dưới:
https://www.youtube.com/channel/UCfN-SAbZPXgUkRMQWAr63zg/videos
Hướng dẫn TẢI DOWNLOAD tài liệu Meanwell SPEC tại nguonmeanwell.vn
