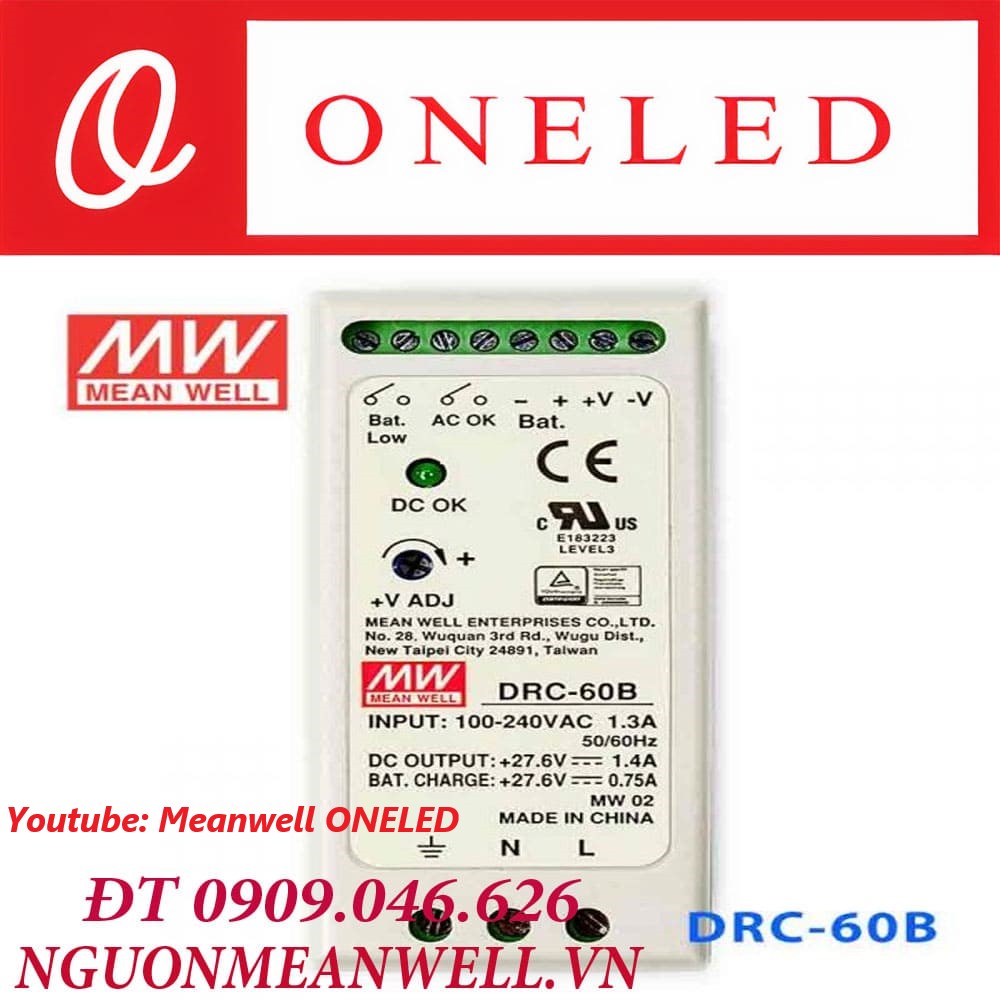

Meanwell DRC-60B Power Supply

Nguồn Meanwell DRC-60B

Tính Năng:

• Universal / Full Range AC Input
• Protection: Short circuit / Overload / Over voltage
• Low battery protection / Battery reverse polarity protection by fuse
• Can be installed on DIN rail TS-35/7.5 or 15
• Alarm signal for AC OK and Low battery via relay contact
• Free air convection cooling
• Pass LPS
• LED indicator for power on
• 100% full load write test

Các Ứng Dụng:

• Security system
• Emergency lighting system
• Alarm system
• DC UPS system
• Central monitoring system
• Access system

Mô Tả về sản phẩm

The DRC-60 is a series of 60W AC/DC DIN rail type security power supplies. In addition to the main output, there is a charger output with a smaller rated current, allowing the application to provide the backup power required by secure access systems. The DRC-60 accepts common inputs between 90VAC and 264VAC, and provides 13.8VDC and 27.6VDC at the output, respectively. With efficiency up to 88%, it can work with air convection cooling below -30% to 70%. In addition to the main protection features such as overload protection, overvoltage protection, low battery cut-off and battery reverse protection (by fuse), alarm signals for AC OK and low battery indication are provided, through the relay contact output, to facilitate system design.

Thông số chi tiết về sản phẩm

Model		DRC-60A		DRC-60B
OUPUT	OUTPUT NUMBER	CH1	CH2	CH1	CH2
	DC VOLTAGE	13.8V	13.8V	27.6V	27.6V
	RATED CURRENT	2.8A	1.5A	1.4A	0.75A
	CURRENT RANGE	0 ~ 4.3A		0 ~ 2.15A
	RATED POWER	59.34W		59.34W
	RIPPLE & NOISE (max.) Note.2	120mVp-p		200mVp-p
	VOLTAGE ADJ. RANGE	CH1:12 ~ 15V		CH1:24 ~ 30V
	VOLTAGE TOLERANCE Note.3	±1.0%		±1.0%
	LINE REGULATION	±0.5%		±0.5%
	LOAD REGULATION	±0.5%		±0.5%
	SETUP, RISE TIME	400ms,50ms/230VAC 800ms,50ms/115VAC at full load
	HOLD UP TIME (Typ.)	50ms/230 10ms/115VAC at full load
INPUT	VOLTAGE RANGE	85 ~ 264VAC 120 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)]
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	86%		88%
	AC CURRENT (Typ.)	1.3A/115VAC 0.8A/230VAC
	INRUSH CURRENT (Typ.)	COLDS TART 30A/115VAC 60A/230VAC
