Nguồn Meanwell ENC-360-24

Categories: Bộ Nguồn Meanwell Sạc Ắc Quy - UPS, ENC ENP series, ENC-360

Description
Reviews (0)

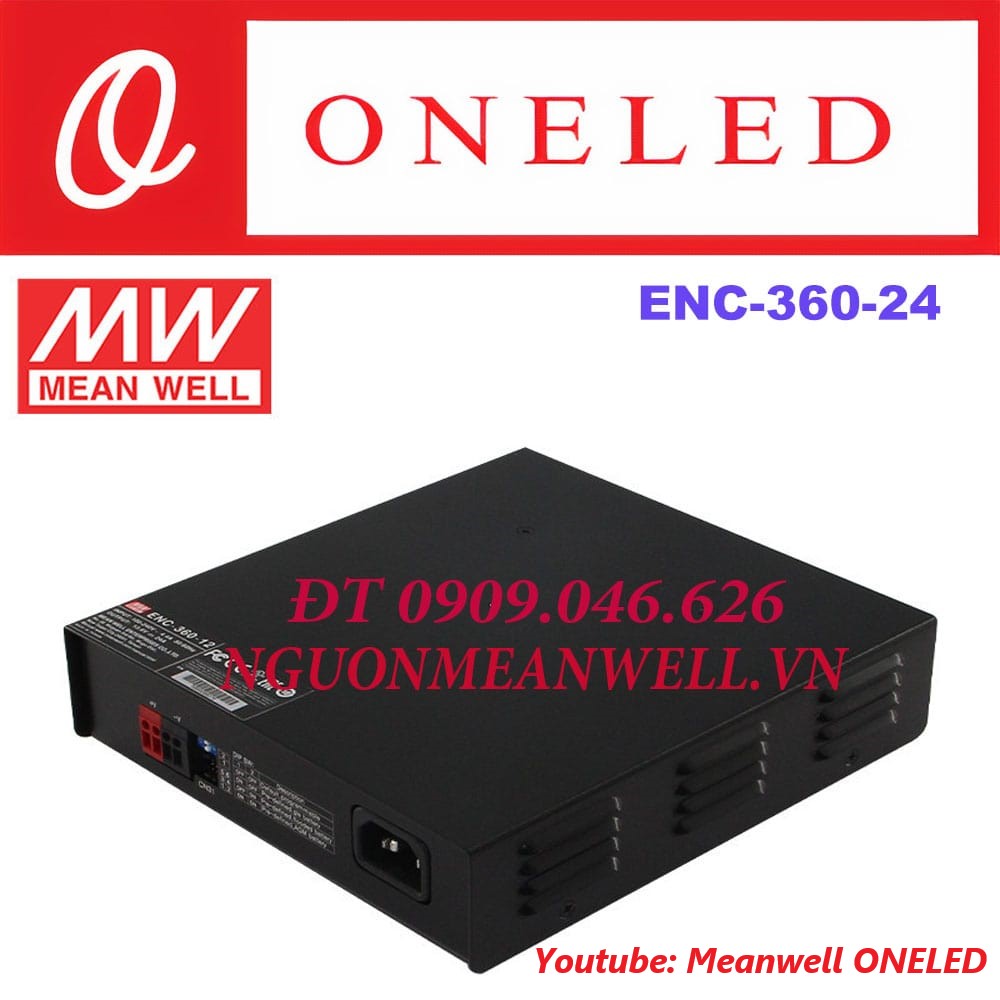

Meanwell ENC-360-24 Power Supply

Nguồn Meanwell ENC-360-24

Tính Năng:

• Chargers for lead-acid batteries (submerged, Gel and AGM)
and li-on batteries (lithium iron and lithium mangaese)
• Built-in 3-stage programmable charging curve
• Universal / Full Range AC Input
• Built-in active PFC function
• Fanless design, cooled by free air convection
• Built-in temperature compensation function
• Protection: Short circuit / Overload / Over voltage / Over temperature
Battery under voltage / Battery over voltage / Battery reverse polarity protection

Các Ứng Dụng:

• Wireless system backup solution
• Electric vehicle charger
• Monitoring system

Mô Tả về sản phẩm

The ENC-360 is a single output 360W AC/DC desktop charger with a 3-stage charging curve. In addition to the embedded predefined charge curves, the default curve is flammable and therefore can accommodate different types of batteries, such as lead-acid batteries (gel, submerged and AGM) and li-ion batteries (lithium iron and lithium manganese). With rugged mechanical design along with high efficiency circuitry, ENC-360 operates in the ambient temperature range of -30 ~ + 70 +C under free air convection

Thông số chi tiết về sản phẩm

Model		ENC-360-12	ENC-360-24	ENC-360-48
OUPUT	BOOST CHAR GE VOLTAGE(Vboost)(default)	14.4V	28.8V	57.6V
	FLOAT CHARGE VOLTAGE(Vfloat)(defaut)	13.8A	27.6V	55.2V
	CHARGE VOLTAGE RANGE Note.3	9 ~ 15V	18 ~ 30V	36 ~ 60V
	OUTPUT CURRENT(CC) (default)	24A	12A	6A
	RATED OUTPUT	345.6W	345.6W	345.6W
	RECOMMEND BATTERY CAPACITY (AMP HOURS) Note.4	85 ~ 250AH	45 ~ 125AH	25 ~ 65AH

	INPUT	VOLTAGE RANGE Note.4	90 ~ 264VAC 127 ~ 370VDC
		FREQUENCY RANGE	47 ~ 63Hz
POWER FACTOR(Typ.)		PF≥0.95/230VAC,PF≥0.98/115VAC at full load
EFFICIENCY (Typ.)		91.00%	92%	93%
AC CURRENT (Typ.)		1.9A/230VAC 3.8A/115VAC
INRUSH CURRENT (Typ.)		Cold start 80A/230VAC
LEAKAGE CURRENT		<3.5mA / 240VAC
