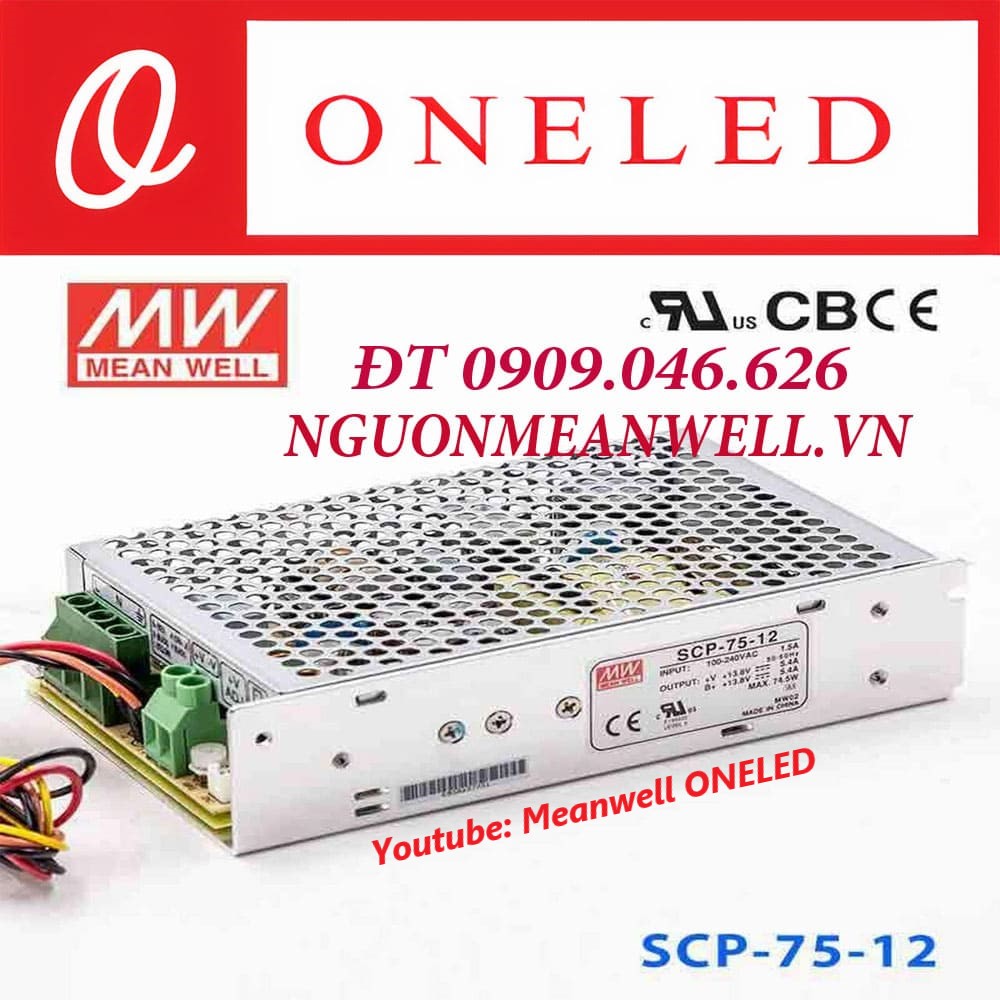

Meanwell SCP-75-12 Power Supply

Nguồn Meanwell SCP-75-12

Tính Năng:

• Universal / Full Range AC Input
• Protection: Short circuit / Overload / Over voltage / Battery polarity protection (by fuse)
• Built-in temperature compensation function
• Output voltage detection signal
• Free air convection cooling
• LED indicator for power on
• No-load power consumption <0.75W
• Suitable for installation in metallic or non-metallic system enclosures
• 100% full load write test

Thông số chi tiết về sản phẩm

Model		SCP-75-12	SCP-75-24
OUTPUT	DC VOLTAGE	13.8V	27.6V
	RATED CURRENT	5.4A	2.7A
	CURRENT RANGE	0 ~ 5.4A	0 ~ 2.7A
	PEAK 5S	6.5A	3.2A
	RATED POWER	74.5W	74.5W
	RIPPLE & NOISE (max.) Note.2	120mVp-p	200mVp-p
	VOLTAGE ADJ.RANGE	5,+15%	5,+15%
	VOLTAGE TOLERANCE Note.3	±2.0%	±1.0%
	LINE REGULATION Note.4	±1.0%	±1.0%
	LOAD REGULATION Note.5	±2.0%	±1.0%
	SETUP, RISE TIME	500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
	HOLD UP TIME (Typ.)	50ms/230VAC 16ms/115VAC at full load
INPUT	VOLTAGE RANGE	85 ~ 264VDC 120 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	80.00%	84%
	AC CURRENT (Typ.)	1.5A/115VAC 0.9A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 45A
	LEAKAGE CURRENT	<2mA/240VAC
PROTECTION	OVER LOAD	6.5 ~ 8.7A rated output power	3.2 ~ 4.3A rated output power
	OVER LOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	16.6 ~ 19.3V	33.1 ~ 38.6V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
