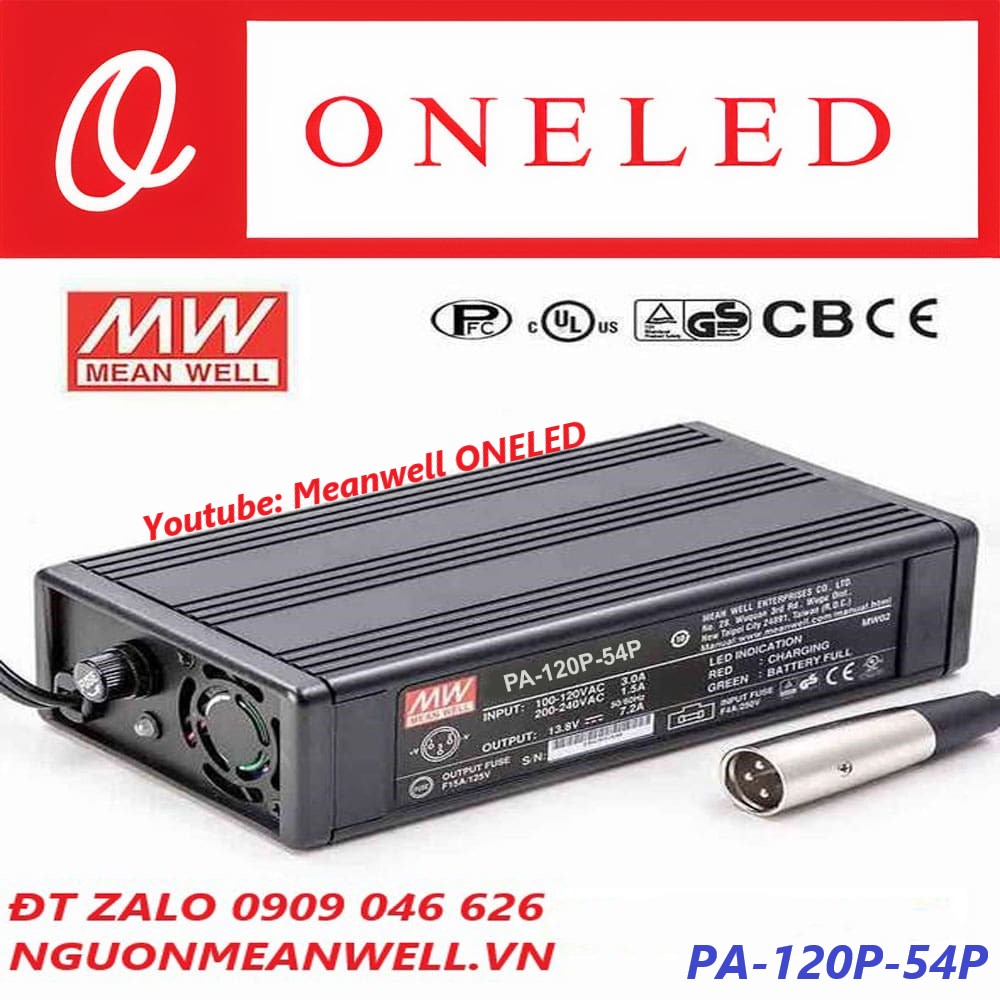

Meanwell PA-120P-54P Power Supply

Nguồn Meanwell PA-120P-54P

Tính Năng:

• AC input range selected by switch
• Built-in passive PFC function compliant with EN61000-3-2
• With AC ON-OFF switch
• 3-pole AC input with fuse holder
• Protection: Short circuit / Over load / Over voltage / Over temperature
• Charger type can be selected (Optional)
• Chargers for lead-acid batteries
• 2 color LED load indicator
• Open frame models available (No safety approval required)
• Low cost, high reliability

Thông số chi tiết về sản phẩm

Model		PA/PB-120-13	PA/PB-120-27	PA/PB-120-54
OUPUT	DC VOLTAGE	13.8V	27.6V	55.2V
	RATED CURRENT	7.2A	4.3A	2.2A
	CURRENT RANGE	0 ~ 7.2A	0 ~ 4.3A	0 ~ 2.2A
	RATED POWER	99.36W	118.68W	121.44W
	LED INDICATED	PA series voltage 105% ±1% ↓: RED / 105%±1% ↑: GREEN
		PB series load 46% ±10% ↓:GREEN / 46% ±10%↑: RED
INPUT	VOLTAGE RANGE Note.4	88 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	73%	79%	79%
	AC CURRENT (Typ.)	3A/115VAC 1.5/230VAC
	INRUSH CURRENT (Typ.)	COLD START 25A/115VAC 50A/230VAC
	LEAKAGE CURRENT	<1.5mA/240VAC
PROTECTION	OVER LOAD	90 ~ 110% rated output power
		Protection type: Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	15 ~ 17V	30 ~ 35V	60 ~ 66V
		Protection type: Hiccup mode, recovers automatically after fault condition is removed
	OVER TEMPERATURE	RTH2≥70⁰C ±10⁰C detect on RTH2 thermistor
		Protection type: Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT	WORKING TEMP.	10 ~ +45⁰C (Refer to “Derating Curve”)
	WORKING HUMIDITY	20 ~ 90% RH non- condensing
	STORAGE TEMP., HUMIDITY	20 ~ +85⁰C, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.05%/⁰C (0 ~ 45⁰C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	UL60950-1,LVD EN62368-1, EAC TP TC 004 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P,I/P-FG,O/P-FG:100M Ohms / 500VDC / 25⁰C / 70%RH
	EMC EMISSION	Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3 ,EAC TP TC 020
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024, light industry level, criteria A, EAC TP TC 020
OTHERS	MTBF	149.6K hrs min. MIL-HDBK-217F (25⁰C)
	DIMENSION	PCB Type: 1449033mm External case type:1809649mm (LWH)
	PACKING	External case type: 1.1Kg ; 16pcs/17.9Kg/1.56CUFT (without PFC) 1.24Kg; 16pcs / 20.1Kg / 1.56CUFT(with PFC) PCB Type :0.36Kg; 36pcs/14Kg/0.99CUFT(without PFC) 0.5Kg; 36pcs/19Kg/0.99CUFT(with PFC)
