Meanwell SDR-480P-24 Power Supply

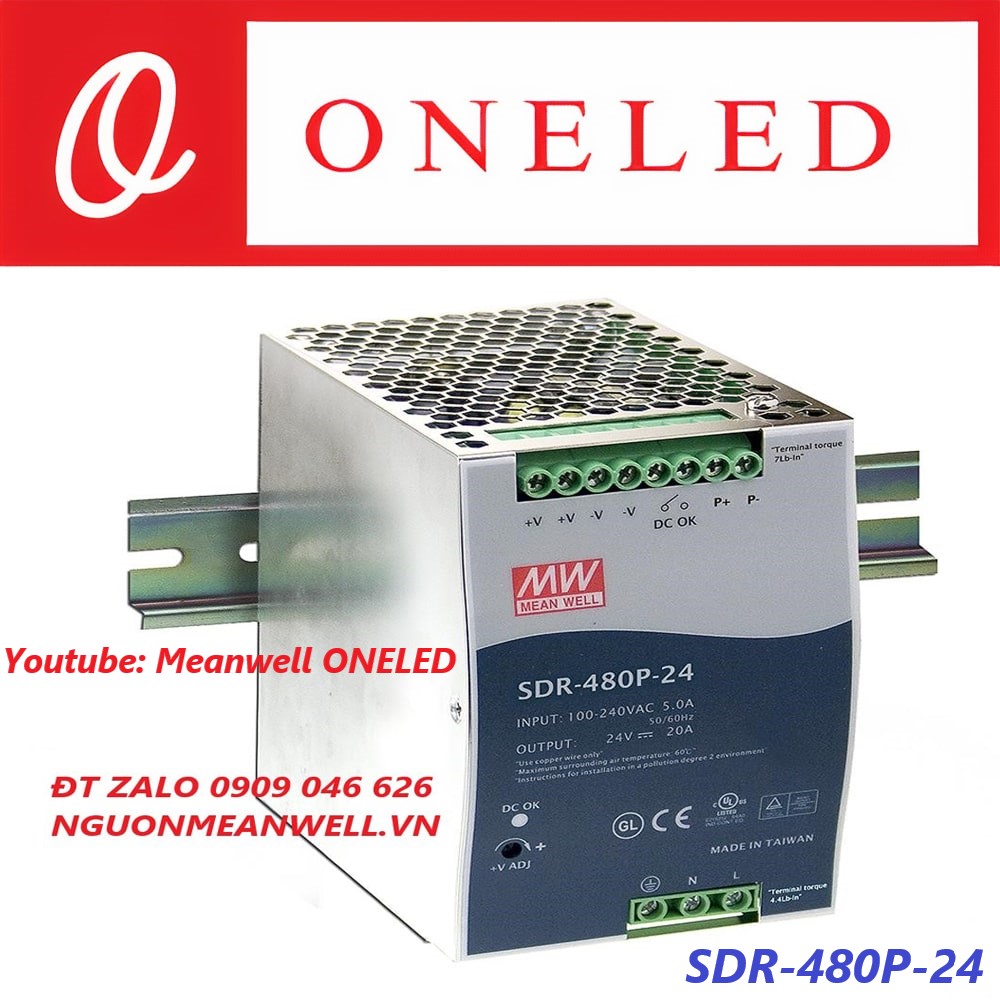

Nguồn Meanwell SDR-480P-24

Tính Năng:

• High efficiency 94% and low power dissipation
• 150% peak load capability
• Built-in active PFC function, PF>0.93
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Cooling by free air convection
• Can be installed on DIN rail TS-35/7.5 or 15
• UL 508(industrial control equipment) approved
• EN61000-6-2(EN50082-2) industrial immunity level
• Built-in DC OK relay contact
• 100% full load burn-in test

Thông số chi tiết về sản phẩm

Model		SDR-480P-24	SDR-480P-48
OUPUT	DC VOLTAGE	24V	48V
	RATED CURRENT	20A	10A
	CURRENT RANGE	0 ~ 20A	0 ~ 10A
	RATED POWER	480W	480W
	PEAK CURRENT	30A	15A
	PEAK POWER	720W (3sec.)
	RIPPLE & NOISE (max.) Note.2	100mVp-p	120mVp-p
	VOLTAGE ADJ. RANGE	24 ~ 28V	48 ~ 55V
	VOLTAGE TOLERANCE Note.3	±1.2%	±1.0%
	LINE REGULATION	±0.5%	±0.5%
	LOAD REGULATION	±1.0%	±1.0%
	SETUP, RISE TIME	1500ms, 150ms/230VAC 3000ms,150ms/115VAC at full load
	HOLD UP TIME (Typ.)	14ms/230VAC at full load
INPUT	VOLTAGE RANGE	90 ~ 264VAC 127 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR(Typ.)	0.94/230VAC 0.99/115VAC at full load
	EFFICIENCY (Typ.) Note.8	94%
	AC CURRENT (Typ.)	5A/115VAC 2.5A/230VAC
	INRUSH CURRENT (Typ.)	40A/115VAC 80A/230VAC
	LEAKAGE CURRENT	<0.6mA/240VAC
PROTECTION	OVER LOAD	Normally works within 110 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage with au-to recovery
		>150% rated power, constant current limiting with auto-recovery within 2 seconds and may cause to shut down if over 2 seconds
	OVER VOLTAGE	29 ~ 33V	56 ~ 65V
		Protection type : Shut down O/P voltage with auto-recovery or re-power on to recovery
	OVER TEMPERATURE	105⁰C ±5⁰C (TSW: detect on heatsink of power switch)
		Protection type: Shut down O/P voltage, recovers automatically after temperature goes down
FUNCTION	DC OK RELAY CONTACT RATING(max.)	60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load
	CURRENT SHARING	Please see the Function Manual
ENVIRONMENT	WORKING TEMP. Note.5	25 ~ +70⁰C (Refer to “Derating curve”)
	WORKING HUMIDITY	20 ~ 95% RH non- condensing
	STORAGE TEMP., HUMIDITY	40 ~ +85⁰C, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/⁰C (0 ~ 50⁰C)
	VIBRATION	Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY & EMC (Note4)	SAFETY STANDARDS	UL508, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336-1 approved;(meet EN60204-1)
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5K/VAC
	ISOLATION RESISTANCE	I/P-O/P,I/P-FG,O/P-FG:>100M Ohms / 500VDC / 25⁰C / 70% RH
	EMC EMISSION	Compliance to EN55032 (CISPR32)Class B, EN61000-3-2,-3, EAC TP TC 020, CNS13438
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024, EN61000-6-2(EN50082-2),EN61024-3, heavy industry level, criteria A, SEMI F47 approved
OTHERS	MTBF	112.9K hrs min. MIL-HDBK-217F(25⁰C)
	DIMENSION	85.5125.2128.5mm (WHD)
	PACKING	1.6Kg; 8pcs/13.8Kg/0.9CUFT
