Meanwell SDR-240-24 Power Supply
Nguồn Meanwell SDR-240-24
Tính Năng:
• High efficiency 94% and low power dissipation
• 150% peak load capability
• Built-in active PFC function, PF>0.93
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Cooling by free air convection
• Can be installed on DIN rail TS-35/7.5 or 15
• UL 508(industrial control equipment) approved
• EN61000-6-2(EN50082-2) industrial immunity level
• Built-in DC OK relay contact
• 100% full load burn-in test
Thông số chi tiết về sản phẩm
| Model | SDR-240-24 | SDR-240-48 | |
| OUPUT | DC VOLTAGE | 24V | 48V |
| RATED CURRENT | 10A | 5A | |
| CURRENT RANGE | 0 ~ 10A | 0 ~ 5A | |
| RATED POWER | 240W | 240W | |
| PEAK CURRENT | 15A | 7.5A | |
| PEAK POWER | 360W (3 sec.) | ||
| RIPPLE & NOISE (max.) Note.2 | 50mVp-p | 50mVp-p | |
| VOLTAGE ADJ. RANGE | 24 ~ 28V | 48 ~ 55V | |
| VOLTAGE TOLERANCE Note.3 | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 650ms, 60ms/230VAC 1300ms,60ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 20ms/230VAC 20ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 88 ~ 264VAC 124 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR(Typ.) | 0.94/230VAC 0.99/115VAC at full load | ||
| EFFICIENCY (Typ.) Note.8 | 94% | ||
| AC CURRENT (Typ.) | 2.6A/115VAC 1.3A/230VAC | ||
| INRUSH CURRENT (Typ.) | 33A/115VAC 55A/230VAC | ||
| LEAKAGE CURRENT | <1mA/240VAC | ||
| PROTECTION | OVER LOAD | Normally works within 110 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage, re-power on to recover | |
| 150 ~ 170% rated power, constant current limiting with auto-recovery within 3 seconds, and then shut down o/p voltage after 3 seconds | |||
| OVER VOLTAGE | 29 ~ 33V | 56 ~ 65V | |
| Protection type : Shut down O/P voltage with auto-recover | |||
| OVER TEMPERATURE | 95⁰C ±10⁰C (TSW) detect on heatsink of power switch | ||
| Protection type: Shut down O/P voltage, re-power on to recover after temperature goes down | |||
| FUNCTION | DC OK RELAY CONTACT RATING(max.) | 60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load | |
| ENVIRONMENT | WORKING TEMP. | 25 ~ +70⁰C (Refer to “Derating curve”) | |
| WORKING HUMIDITY | 20 ~ 95% RH non- condensing | ||
| STORAGE TEMP., HUMIDITY | 40 ~ +85⁰C, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.03%/⁰C (0 ~ 50⁰C) | ||
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | ||
| SAFETY & EMC (Note4) |
SAFETY STANDARDS | UL508, TUV EN60950-1 approved;(meet EN60204-1) | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5K/VAC | ||
| ISOLATION RESISTANCE | I/P-O/P,I/P-FG,O/P-FG:>100M Ohms / 500VDC / 25⁰C / 70% RH | ||
| EMC EMISSION | Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3 | ||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024, EN61000-6-2(EN50082-2),EN61024-3, heavy industry level, criteria A, SEMI F47, GL approved | ||
| OTHERS | MTBF | 169.3K hrs min. MIL-HDBK-217F(25⁰C) | |
| DIMENSION | 63*125.2*113.5mm (W*H*D) | ||
| PACKING | 1.03Kg; 12pcs/13.4Kg/1.06CUFT | ||

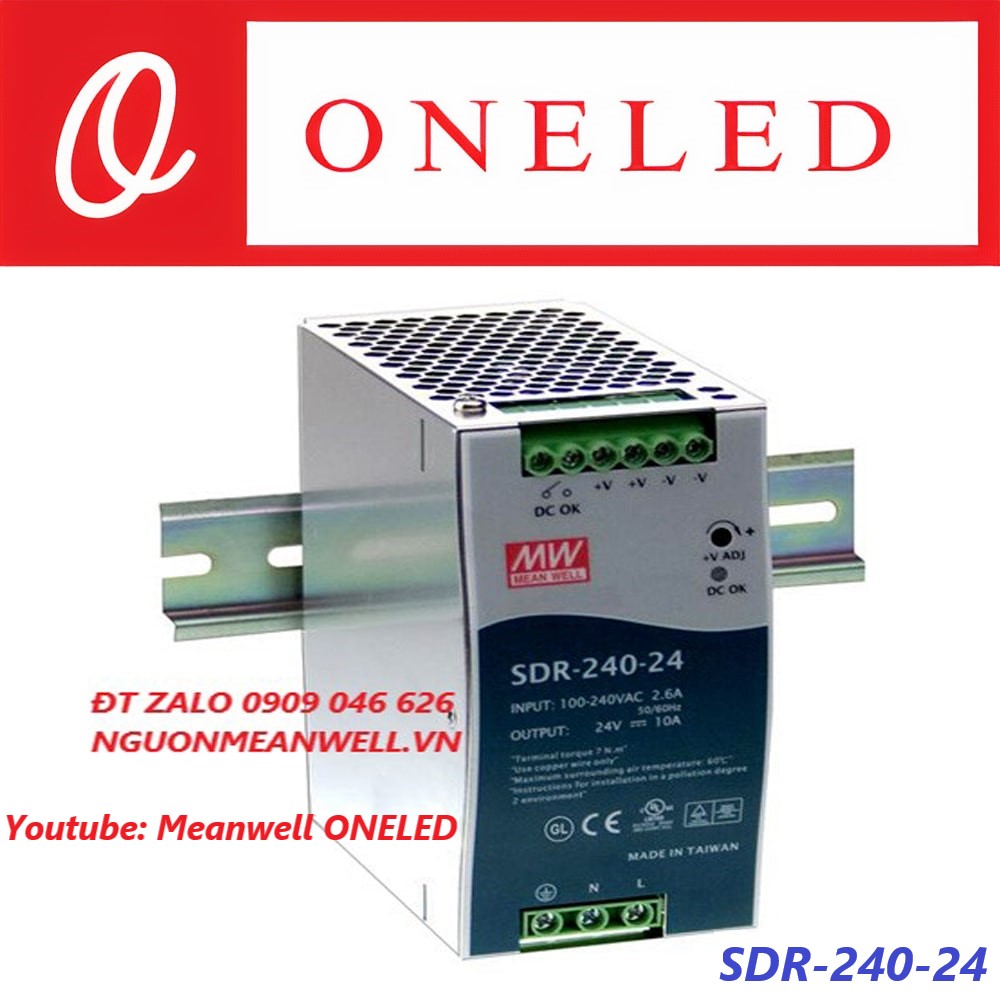

Hình Ảnh về Nguồn Meanwell SDR-240-24 và sản phẩm liên quan:
