Meanwell SDR-120-48 Power Supply

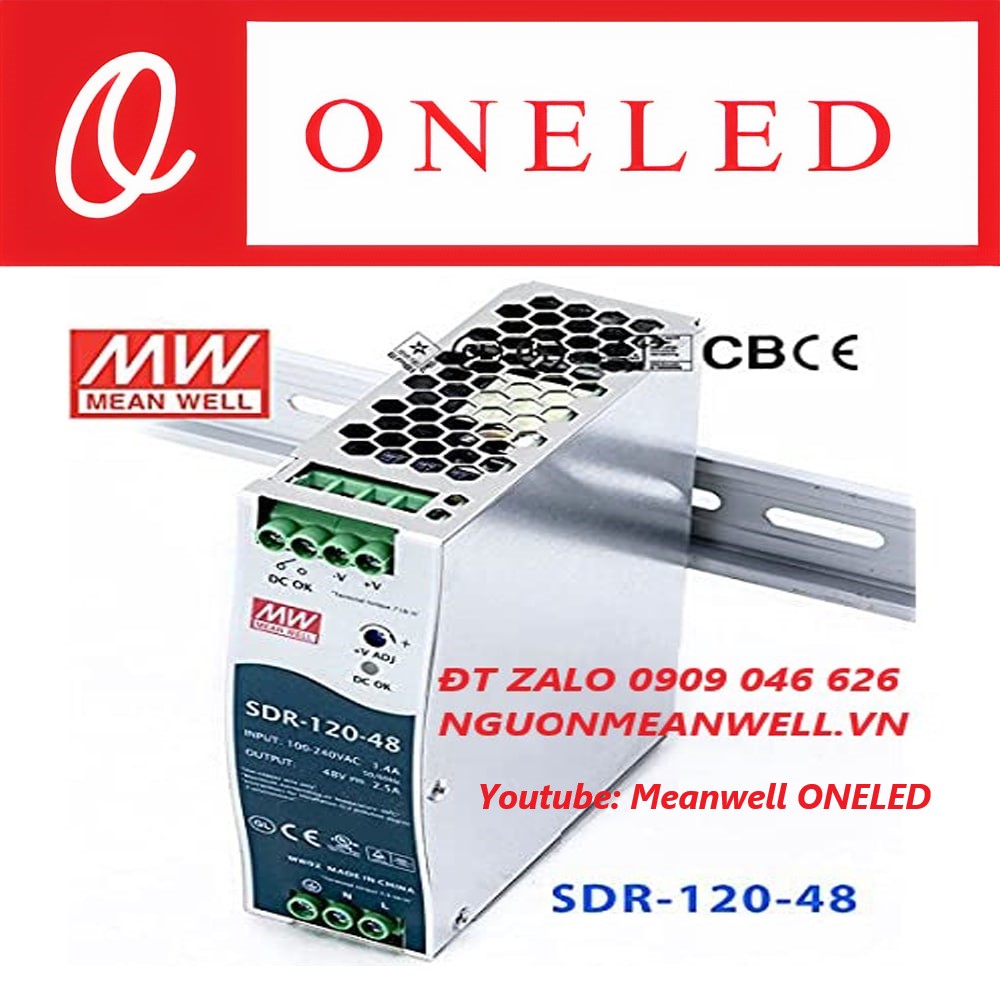

Nguồn Meanwell SDR-120-48

Tính Năng:

• High efficiency 91% and low power dissipation
• 150% peak load capability
• Built-in active PFC function, PF>0.93
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Cooling by free air convection
• Can be installed on DIN rail TS-35/7.5 or 15
• UL 508(industrial control equipment) approved
• EN61000-6-2(EN50082-2) industrial immunity level
• Built-in DC OK relay contact
• 100% full load burn-in test

Thông số chi tiết về sản phẩm

Model		SDR-120-12	SDR-120-24	SDR-120-48
OUPUT	DC VOLTAGE	12V	24V	48V
	RATED CURRENT	10A	5A	2.5A
	CURRENT RANGE	0 ~ 10A	0 ~ 5A	0 ~ 2.5A
	RATED POWER	120W	120W	120W
	PEAK CURRENT	15A	7.5A	3.75A
	PEAK POWER Note.6	180W (3 sec.)
	RIPPLE & NOISE (max.) Note.2	100mVp-p	100mVp-p	120mVp-p
	VOLTAGE ADJ. RANGE	12 ~ 14V	24 ~ 28V	48 ~ 55V
	VOLTAGE TOLERANCE Note.3	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±1.0%	±1.0%	±1.0%
	SETUP, RISE TIME	1500ms, 60ms/230VAC 3000ms,60ms/115VAC at full load
	HOLD UP TIME (Typ.)	80ms/230VAC 20ms/115VAC at full load
INPUT	VOLTAGE RANGE Note.7	88 ~ 264VAC 124 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	89%	91%	91%
	AC CURRENT (Typ.)	1.4A/115VAC 0.7A/230VAC
	INRUSH CURRENT (Typ.)	35A/115VAC 70A/230VAC
	LEAKAGE CURRENT	<1mA/240VAC
PROTECTION	OVER LOAD	Normally works within 110 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage, re-power on to recover
	OVER LOAD	150 ~ 170% rated power, constant current limiting with auto-recovery within 3 seconds, and then shut down o/p voltage after 3 seconds
	OVER VOLTAGE	14 ~ 17V	29 ~ 33V	56 ~ 65V
	OVER VOLTAGE	Protection type : Shut down O/P voltage, re-power on to recover
	OVER TEMPERATURE	95⁰C ±10⁰C (TSW) detect on heatsink of power switch
	OVER TEMPERATURE	Protection type: Shut down O/P voltage, re-power on to recover after temperature goes down
