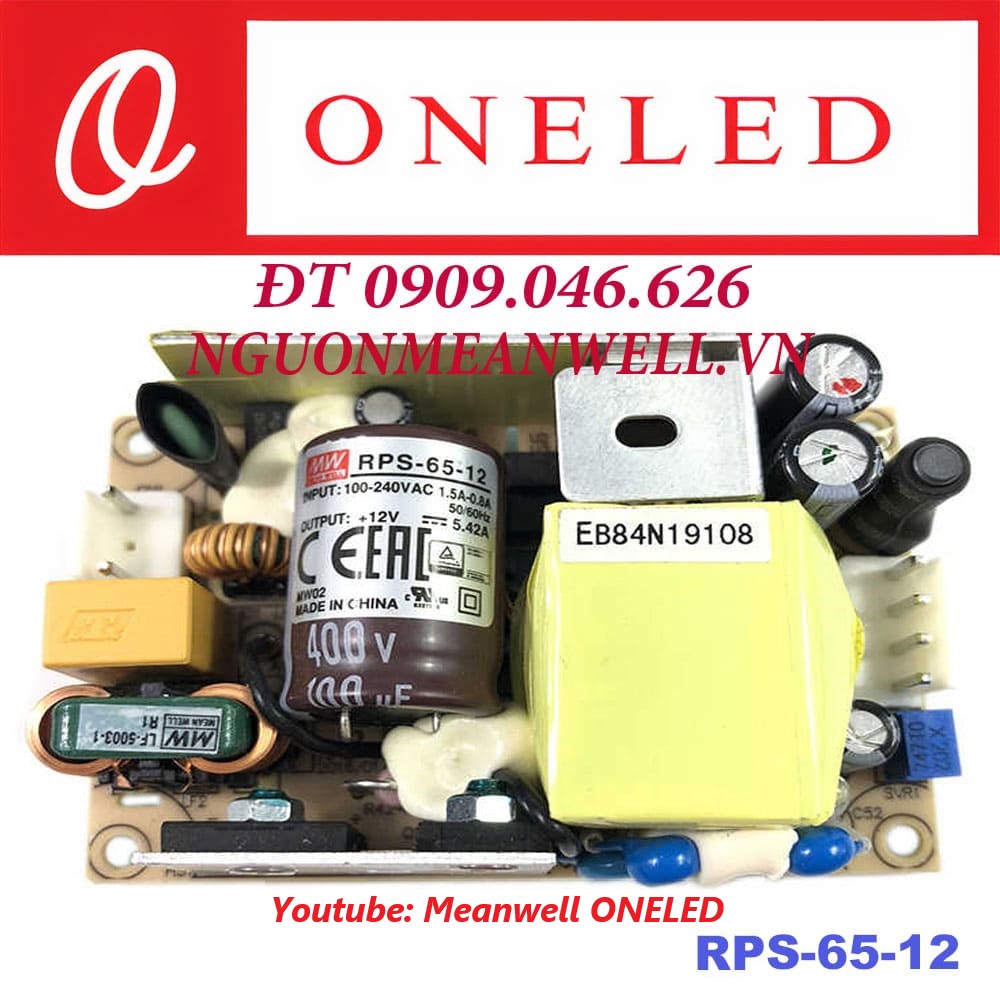

Meanwell RPS-65-12 Power Supply

Nguồn Meanwell RPS-65-12

Tính Năng:

• Compact size 3″x2″
• Medically approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
• Suitable for BF application with proper system considerations
• Free air convection cooling
• Class B EMI for Class II configuration
• No-load power consumption <0.1W
• Extremely low leakage current
• Protection: Short circuit / Overload / Over voltage
• Operating altitude up to 4000 meters

Các Ứng Dụng:

• Oral irrigators
• Hemodialysis machine
• Medical computer monitor
• Sleep apnea device

Mô Tả về sản phẩm

The RPS-65 is a highly reliable 65W green PCB type medical power supply with high power density on a 3″ x 2″ size. It accepts 80~264VAC input and provides different output voltages between 3.3V and 48V.
Working efficiency is up to 91% and no-load power consumption is extremely low to less than 0.1W. The RSP-65 can be used for a Type II (FG-free) system design. Extremely low leakage current less than 100µA. In addition, it complies with international medical regulations (2*MOPP) and EMC EN55011, perfectly suitable for all types of BF rated “patient contact” medical system devices.

Thông số chi tiết về sản phẩm

Model		RPS-65-3.3	RPS-65-5	RPS-65-7.5	RPS-65-12	RPS-65-15	RPS-65-24	RPS-65-48
OUPUT	DC VOLTAGE	3.3V	5V	7.5V	12V	15V	24V	48V
	RATED CURRENT	10A	10A	8A	5.42A	4.34A	2.71A	1.36A
	CURRENT RANGE	0 ~ 11A	0 ~ 11A	0 ~ 8.8A	0 ~ 5.96A	0 ~ 4.77A	0 ~ 2.98A	0 ~ 1.49A
	RATED POWER	33W	50W	60W	65W	65.1W	65W	65.3W
	PEAK LOAD (10sec.)	36.3W	55W	66W	71.5W	71.6W	71.5W	71.5W
	RIPPLE & NOISE (max.) Note.2	80mVp-p	80mVp-p	80mVp-p	120mVp-p	120mVp-p	120mVp-p	120mVp-p
	VOLTAGE ADJ.RANGE	2.9 ~ 3.6V	4.7 ~ 5.5V	7.12 ~ 8.3V	11.4 ~ 13.2V	13.5 ~ 16.5V	22.8 ~ 27.6V	45.6 ~ 52.8V
	VOLTAGE TOLERANCE Note.3	±2.0%	±2.0%	±2.0%	±2.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±2.0%	±2.0%	±2.0%	±2.0%	±1.0%	±1.0%	±1.0%
	SETUP, RISE TIME	500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
	HOLD UP TIME (Typ.)	30ms/230VAC 16ms/115VAC at full load
INPUT	VOLTAGE RANGE	80 ~ 264VAC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	80%	84%	85%	88%	89%	90%	91%
	AC CURRENT (Typ.)	1.5A/115VAC 1A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 30A/115VAC 60A/230VAC
	LEAKAGE CURRENT	Touch current< 100µA/264VAC
