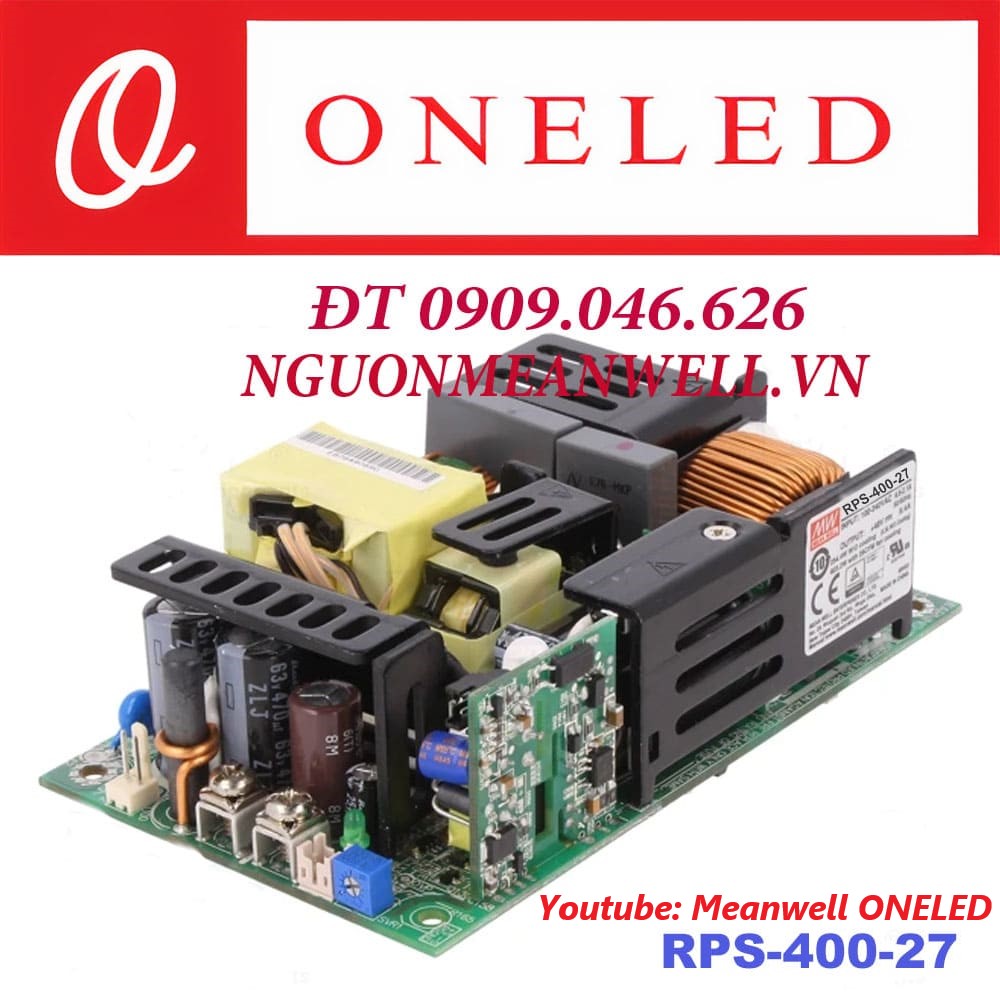

Meanwell RPS-400-27 Power Supply

Nguồn Meanwell RPS-400-27

Tính Năng:

• Compact size 5″x3″
• Medically approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
• Suitable for BF application with proper system configuration
• 250W convection, 400W air force
• EMI Class B for Class I & Class A for Class II configuration
• No-load power consumption <0.5W by PS-ON . control
• Standby output 5Vdc, fan supply 12Vdc, Good power, Power failure and remote sensing
• Protection: Short circuit / Overload / Over voltage / Over temperature
• Operating altitude up to 4000 meters

Các Ứng Dụng:

• Oral irrigators
• Hemodialysis machine
• Medical monitor
• Sleep apnea device
• Pumps
• Electric bed

Mô Tả về sản phẩm

The RPS-400 is a highly reliable 400W green PCB type medical power supply with high power density on a 5″ x 3″ size. It accepts 80~264VAC input and provides different output voltages between 12V and 48V.
Working efficiency up to 94% and extremely low no-load power consumption down to less than 0.5W.RPS-400 (drum type only) can be used for either Class I (with FG) or Class II (not FG) system design. Extremely low leakage current less than 160µA. In addition, it complies with international medical regulations (2*MOPP) and EMC EN55011, perfectly suitable for all types of BF rated “patient contact” medical system devices. The RPS-400 series also offers bundled styling (-C/TF/SF)

Thông số chi tiết về sản phẩm

Model		RPS-400-12	RPS-400-15	RPS-400-18	RPS-400-24	RPS-400-27	RPS-400-36	RPS-400-48
OUPUT	DC VOLTAGE	12V	15V	18V	24V	27V	36V	48V
	CURRENT 25CFM	33.3A	26.7A	22.3A	16.7A	14.9A	11.2A	0 ~ 4.17A
	CURRENT CONVECTION	0 ~ 25A	0 ~ 20A	13.9A	0 ~ 12.5A	0 ~ 11.12A	7A	0 ~ 6.25A
	RATED POWER 25CFM	399.6W	400.5W	401.4W	400.8W	402.3W	403.2W	403.2W
	RATED POWER CONVECTION	249.6W	250.5W	250.2W	252W	251.1W	252W	254.4W
	RIPPLE & NOISE (max.) Note.2	120mVp-p	120mVp-p	150mVp-p	150mVp-p	200mVp-p	200mVp-p	200mVp-p
	VOLTAGE ADJ.RANGE	11.4 ~ 12.6V	14.3 ~ 15.8V	17.1 ~ 18.9V	22.8 ~ 25.2V	25.6 ~ 28.4V	34.2 ~ 37.8V	45.6 ~ 50.4V
	VOLTAGE TOLERANCE Note.3	±3.0%	±3.0%	±3.0%	±2.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	SETUP, RISE TIME	1000ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load
	HOLD UP TIME (Typ.)	16ms/230VAC 16ms/115VAC at full load
INPUT	VOLTAGE RANGE	80 ~ 265vac 127 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR	PF>0.94/230VAC PF>0.98/115VAC at full load
	EFFICIENCY (Typ.)	92%	92%	93%	93%	94%	94%	94%
	AC CURRENT (Typ.)	4.2A/115VAC 2.1A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 35A/115VAC 70A/230VAC
	LEAKAGE CURRENT	Earth leakage current< 200µA/264VAC, Touch current < 70µA/264VAC
