Nguồn Meanwell RPS-400-24-C
Meanwell RPS-400-24-C Power Supply
Nguồn Meanwell RPS-400-24-C
Tính Năng:
• Compact size 5″x3″
• Medically approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
• Suitable for BF application with proper system configuration
• 250W convection, 400W air force
• EMI Class B for Class I & Class A for Class II configuration
• No-load power consumption <0.5W by PS-ON . control
• Standby output 5Vdc, fan supply 12Vdc, Good power, Power failure and remote sensing
• Protection: Short circuit / Overload / Over voltage / Over temperature
• Operating altitude up to 4000 meters
Các Ứng Dụng:
• Oral irrigators
• Hemodialysis machine
• Medical monitor
• Sleep apnea device
• Pumps
• Electric bed
Mô Tả về sản phẩm
- The RPS-400 is a highly reliable 400W green PCB type medical power supply with high power density on a 5″ x 3″ size. It accepts 80~264VAC input and provides different output voltages between 12V and 48V.
Working efficiency up to 94% and extremely low no-load power consumption down to less than 0.5W.RPS-400 (drum type only) can be used for either Class I (with FG) or Class II (not FG) system design. Extremely low leakage current less than 160µA. In addition, it complies with international medical regulations (2*MOPP) and EMC EN55011, perfectly suitable for all types of BF rated “patient contact” medical system devices. The RPS-400 series also offers bundled styling (-C/TF/SF)
Thông số chi tiết về sản phẩm
| Model | RPS-400-12 | RPS-400-15 | RPS-400-18 | RPS-400-24 | RPS-400-27 | RPS-400-36 | RPS-400-48 | |
| OUPUT | DC VOLTAGE | 12V | 15V | 18V | 24V | 27V | 36V | 48V |
| CURRENT 25CFM | 33.3A | 26.7A | 22.3A | 16.7A | 14.9A | 11.2A | 0 ~ 4.17A | |
| CURRENT CONVECTION | 0 ~ 25A | 0 ~ 20A | 13.9A | 0 ~ 12.5A | 0 ~ 11.12A | 7A | 0 ~ 6.25A | |
| RATED POWER 25CFM | 399.6W | 400.5W | 401.4W | 400.8W | 402.3W | 403.2W | 403.2W | |
| RATED POWER CONVECTION | 249.6W | 250.5W | 250.2W | 252W | 251.1W | 252W | 254.4W | |
| RIPPLE & NOISE (max.) Note.2 | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | |
| VOLTAGE ADJ.RANGE | 11.4 ~ 12.6V | 14.3 ~ 15.8V | 17.1 ~ 18.9V | 22.8 ~ 25.2V | 25.6 ~ 28.4V | 34.2 ~ 37.8V | 45.6 ~ 50.4V | |
| VOLTAGE TOLERANCE Note.3 | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load | |||||||
| HOLD UP TIME (Typ.) | 16ms/230VAC 16ms/115VAC at full load | |||||||
| INPUT | VOLTAGE RANGE | 80 ~ 265vac 127 ~ 370VDC | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| POWER FACTOR | PF>0.94/230VAC PF>0.98/115VAC at full load | |||||||
| EFFICIENCY (Typ.) | 92% | 92% | 93% | 93% | 94% | 94% | 94% | |
| AC CURRENT (Typ.) | 4.2A/115VAC 2.1A/230VAC | |||||||
| INRUSH CURRENT (Typ.) | COLD START 35A/115VAC 70A/230VAC | |||||||
| LEAKAGE CURRENT | Earth leakage current< 200µA/264VAC, Touch current < 70µA/264VAC | |||||||

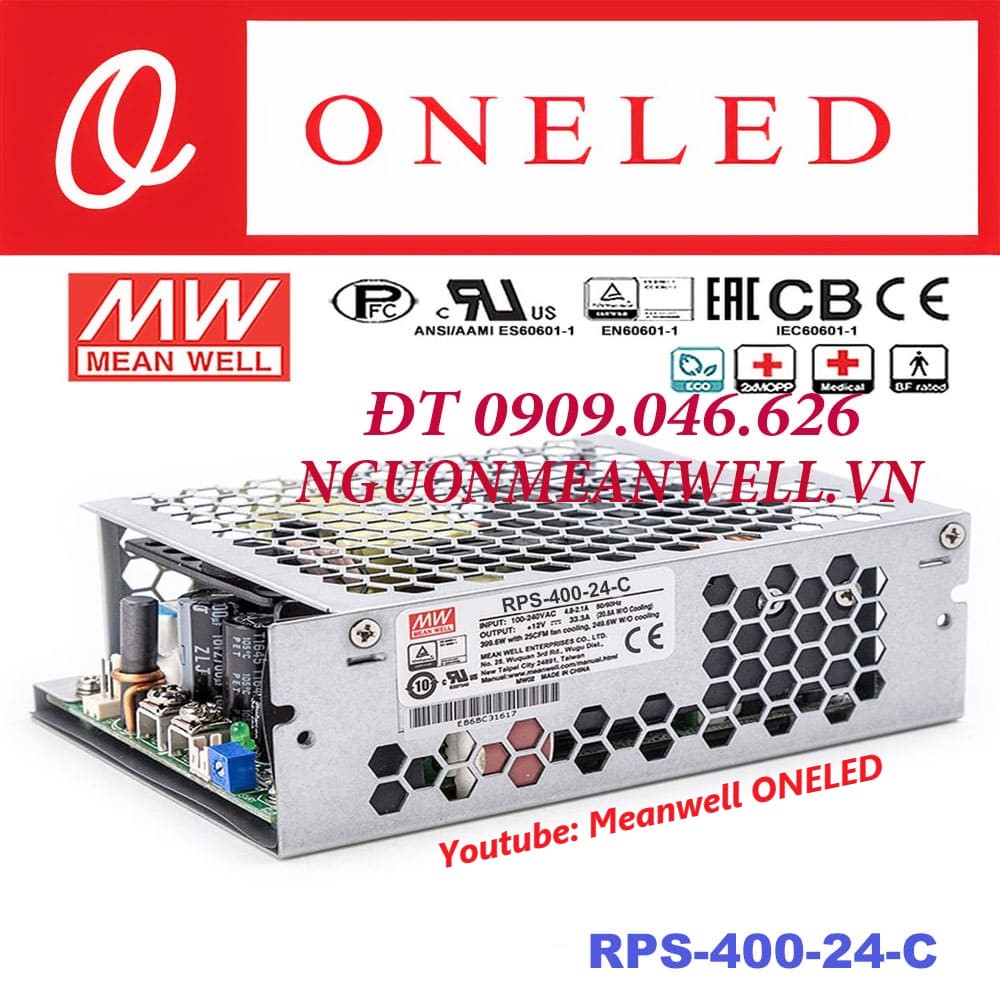

Hình Ảnh về Nguồn Meanwell RPS-400-24-C
