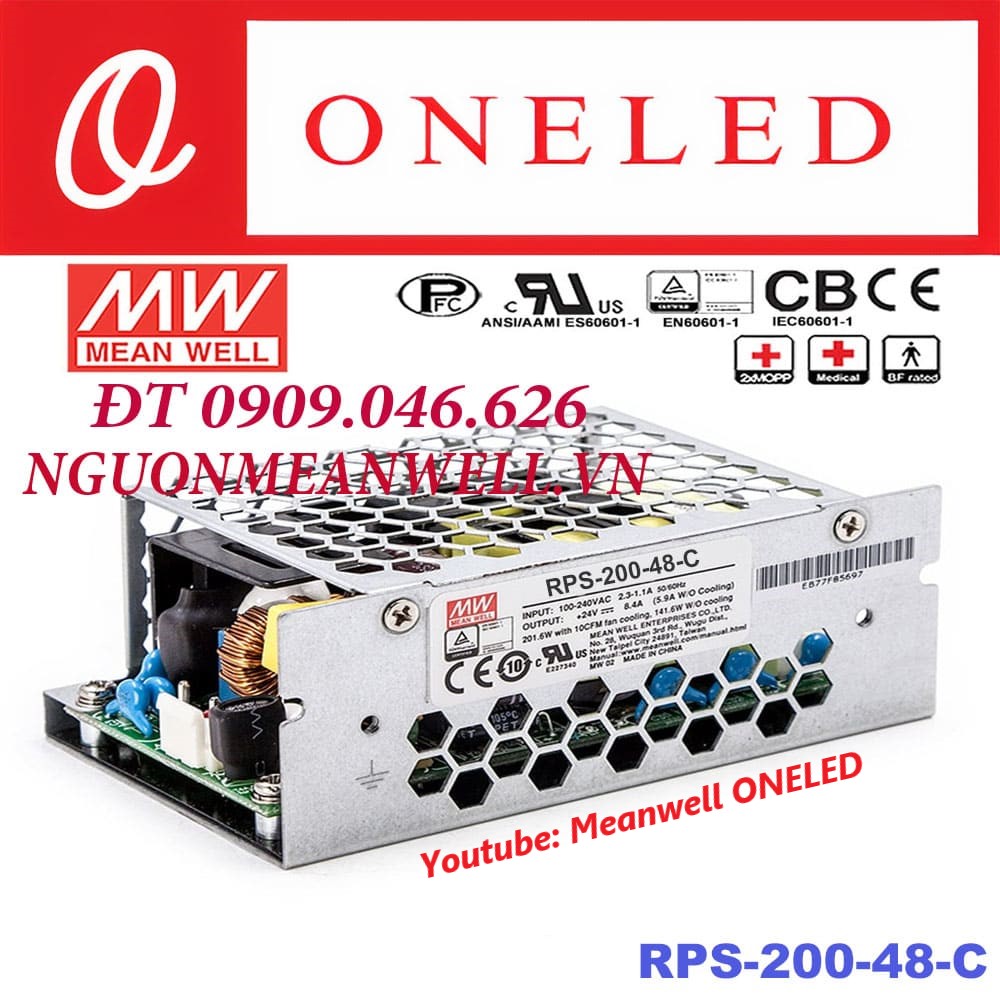

Meanwell RPS-200-48-C Power Supply

Nguồn Meanwell RPS-200-48-C

Tính Năng:

• Compact size 4″x2″
• Medically approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
• Suitable for BF application with proper system considerations
• Convection 140W, air force 200W
• Conductive EMI for class B with FG (class I) & class A without FG (class II)
• No-load power consumption <0.5W
• Extremely low leakage current
• 12V / 0.5A . fan power supply
• Protection: Short circuit / Overload / Over voltage / Over temperature
• Lifespan > 65K hours
• Operating altitude up to 5000 meters

Các Ứng Dụng:

• Oral irrigators
• Hemodialysis machine
• Medical monitor
• Sleep apnea device
• Pumps
• Electric bed

Mô Tả về sản phẩm

The RPS-200 is a highly reliable 200W green PCB type medical power supply with high power density across an area of 4″ x 2″. It accepts 80~264VAC input and provides different output voltages between 3.3V and 48V.
Working efficiency is up to 95% and no-load power consumption is extremely low to less than 0.5W. The RSP-200 can be used for both Type I (with FG) and Type II (without FG) system designs. Extremely low leakage current less than 130µA. In addition, it complies with international medical regulations (2*MOPP) and EMC EN55011, perfectly suitable for all types of BF rated “patient contact” medical system devices.

Thông số chi tiết về sản phẩm

Model		RPS-200-12	RPS-200-15	RPS-200-24	RPS-200-27	RPS-200-48
OUPUT	DC VOLTAGE	12V	15V	24V	27V	48V
	CURRENT 10CFM	16.7A	13.4A	8.4A	7.5A	4.2A
	CURRENT CONVECTION	11.7A	9.4A	5.9A	5.3A	3A
	RATED POWER 10CFM	200.4W	201W	201.6W	202.5W	201.6W
	RATED POWER CONVECTION	140.4W	141W	141.6W	143.1W	144W
	RIPPLE & NOISE (max.) Note.2	100mVp-p	100mVp-p	120mVp-p	120mVp-p	120mVp-p
	VOLTAGE ADJ.RANGE	11.4 ~ 13.2V	13.5 ~ 16.5V	22.8 ~ 27.6V	11.4 ~ 13.2V	45.6 ~ 52.8V
	VOLTAGE TOLERANCE Note.3	±2.0%	±2.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	SETUP, RISE TIME	700ms, 30ms/230VAC 700ms, 30ms/115VAC at full load
	HOLD UP TIME (Typ.)	16ms/230VAC 16ms/115VAC at full load
INPUT	VOLTAGE RANGE	80 ~ 265vac 113 ~ 370vdc
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	93%	94%	94%	94%	95%
	AC CURRENT (Typ.)	2A/115VAC 1A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 30A/115VAC 60A/230VAC
	LEAKAGE CURRENT	Earth leakage current< 130µA/264VAC, Touch current < 40µA/264VAC
