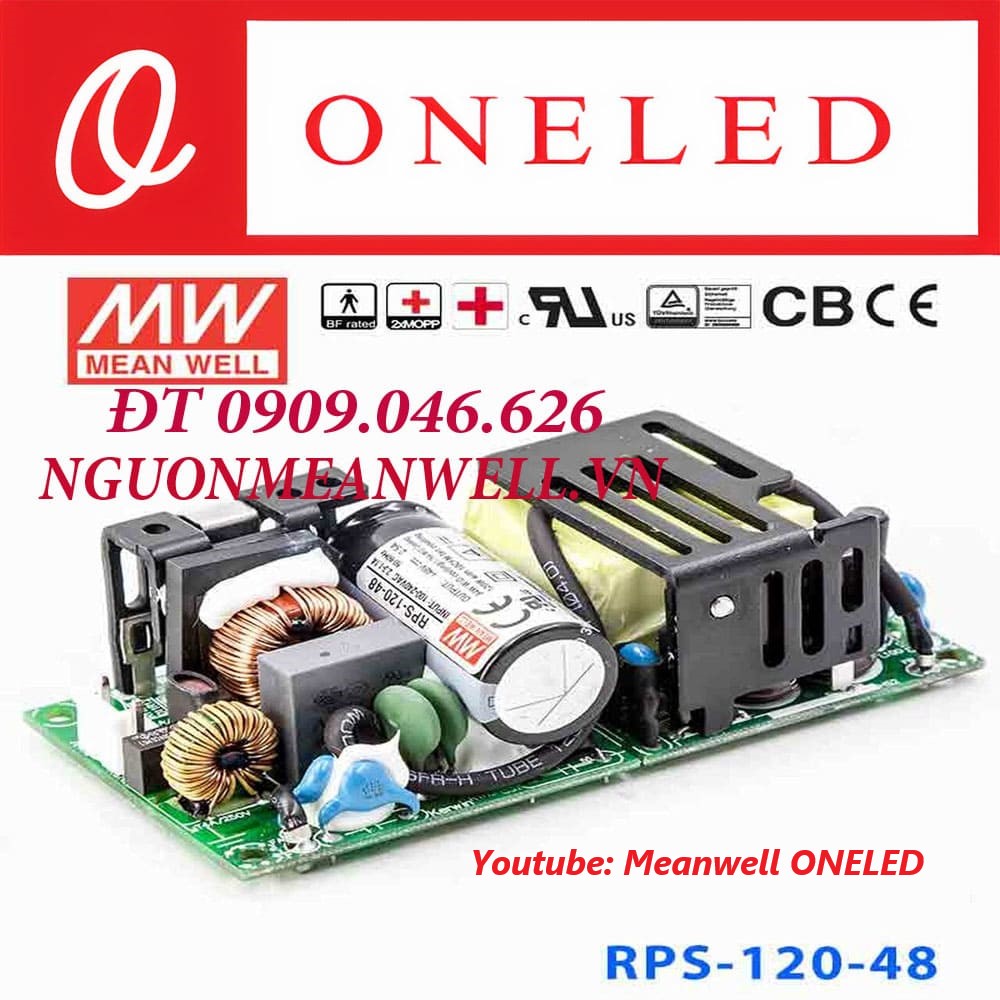

Meanwell RPS-120-48 Power Supply

Nguồn Meanwell RPS-120-48

Tính Năng:

• Compact size 4″x2″
• Medically approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
• Suitable for BF application with proper system considerations
• 84W convection, 120W air force
• Class B EMI for class I (with FG) & class II (without FG) configurations
• No-load power consumption <0.3W
• Extremely low leakage current
• 12V / 0.5A . fan power supply
• Protection: Short circuit / Overload / Over voltage / Over temperature
• Operating altitude up to 4000 meters

Các Ứng Dụng:

• Oral irrigators
• Hemodialysis machine
• Medical computer monitor
• Sleep apnea device

Mô Tả về sản phẩm

The RPS-120 is a highly reliable 120W green PCB type medical power supply with high power density on a 4″ x 2″ area. It accepts 80~264VAC input and provides different output voltages between 12V and 48V.
Working efficiency is up to 86% and no-load power consumption is extremely low to less than 0.3W. The RSP-120 can be used for a Type II (FG-free) system design. Extremely low leakage current less than 150µA. In addition, it complies with international medical regulations (2*MOPP) and EMC EN55011, perfectly suitable for all types of BF rated “patient contact” medical system devices.

Thông số chi tiết về sản phẩm

Model		RPS-120-12	RPS-120-15	RPS-120-24	RPS-120-27	RPS-120-48
OUPUT	DC VOLTAGE	12V	15V	24V	27V	48V
	CURRENT 10CFM	10A	8A	5A	4.5A	2.5A
	CURRENT CONVECTION	7A	5.6A	3.5A	3.15A	1.75A
	RATED POWER 10CFM	120W	120W	120W	121.5W	120W
	RATED POWER CONVECTION	84W	84W	84W	85W	84W
	RIPPLE & NOISE (max.) Note.2	100mVp-p	120mVp-p	150mVp-p	150mVp-p	150mVp-p
	VOLTAGE ADJ.RANGE	11.4 ~ 13.2V	13.5 ~ 16.5V	22.8 ~ 27.6V	11.4 ~ 13.2V	45.6 ~ 52.8V
	VOLTAGE TOLERANCE Note.3	±2.0%	±2.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	SETUP, RISE TIME	500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
	HOLD UP TIME (Typ.)	50ms/230VAC 10ms/115VAC at full load
INPUT	VOLTAGE RANGE	80 ~ 265vac 113 ~ 370vdc
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	89%	89%	90%	90%	91%
	AC CURRENT (Typ.)	2.1A/115VAC 1.2A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 30A/115VAC 60A/230VAC
	LEAKAGE CURRENT	Earth leakage current< 150µA/264VAC, Touch current < 80µA/264VAC
