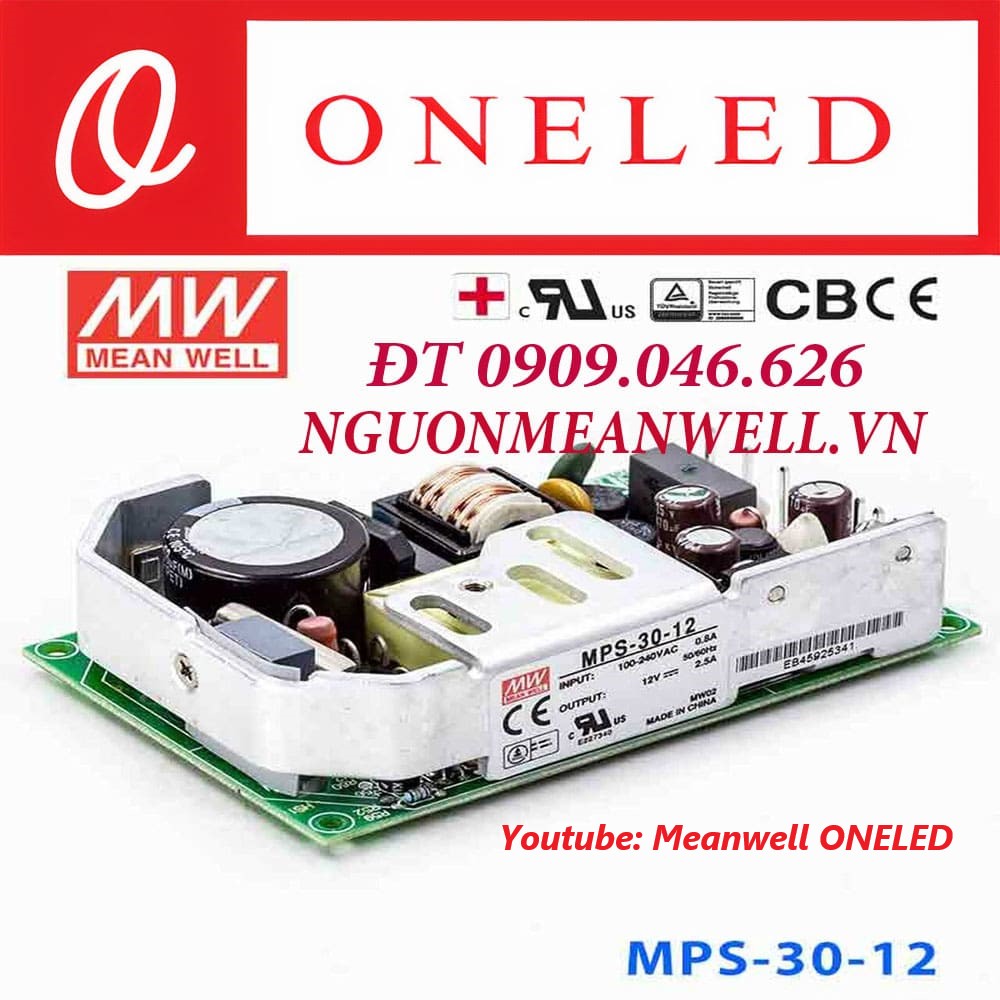

Meanwell MPS-30-12 Power Supply

Nguồn Meanwell MPS-30-12

Tính Năng:

• Universal/full range AC input
• Low leakage current <200µA
• Protection: Short circuit / Overload / Over voltage / Over temperature
• Medical Safety Approved (2 x MOPP between elementary to high school)
• Fixed switching frequency at 100KHz
• Low price
• High reliability

Thông số chi tiết về sản phẩm

Model		MPS-30-5	MPS-30-12	MPS-30-15	MPS-30-24	MPS-30-27	MPS-30-48
OUPUT	DC VOLTAGE	5V	12V	15V	24V	27V	48V
	RATED CURRENT	5A	2.5A	2A	1.2A	1.1A	0.6A
	CURRENT RANGE	0 ~ 5A	0 ~ 2.5A	0 ~ 2A	0 ~ 1.2A	0 ~ 1.1A	0 ~ 0.6A
	RATED POWER	25W	30W	30W	28.8W	29.7W	28.8W
	RIPPLE & NOISE (max.) Note.2	80mVp-p	120mVp-p	150mVp-p	240mVp-p	240mVp-p	240mVp-p
	VOLTAGE TOLERANCE Note.3	±3.0%	±3.0%	±3.0%	±3.0%	±3.0%	±2.0%
	LINE REGULATION	±1.0%	±1.0%	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±2.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	SETUP, RISE TIME	500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
	HOLD UP TIME (Typ.)	70ms/230VAC 12ms/115VAC at full load
INPUT	VOLTAGE RANGE	88 ~ 264VAC 120 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	72%	75%	76%	77%	78%	78%
	AC CURRENT (Typ.)	0.8A/115VAC 0.5A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 40A/230VAC
	LEAKAGE CURRENT	Earth leakage current <200µA/264VAC
PROTECTION	OVER LOAD	Above 105% rated output power
	OVER LOAD	Protection type : Hiccup mode , recovers automatically after fault condition is removed
	OVER VOLTAGE	5.5 ~ 6.75V	13.2 ~ 16.2V	16.5 ~ 20.25V	26.4 ~ 32.4V	29.7 ~ 36.45V	52.8 ~ 64.8V
	OVER VOLTAGE	Protection type : Hiccup mode , recovers automatically after fault condition is removed
	OVER TEMPERATURE	Shut down O/P voltage, re-power on to recover
