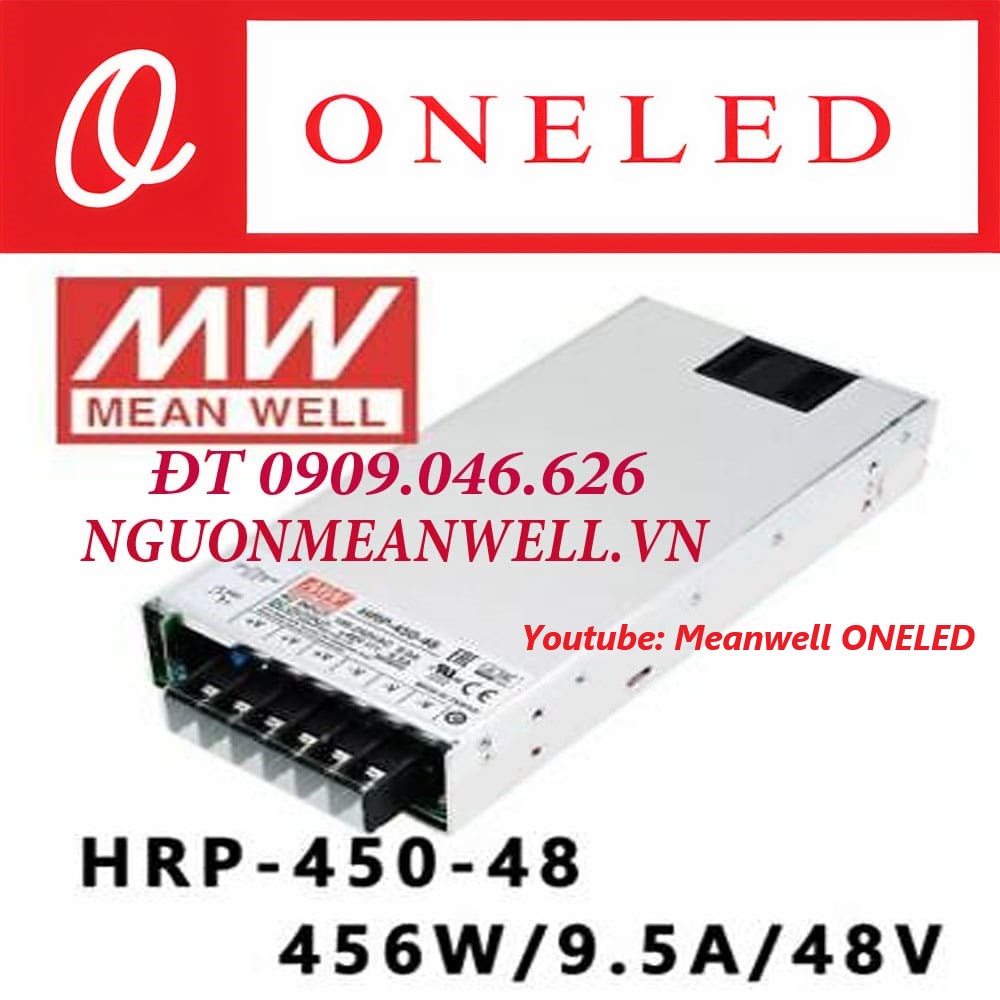

Meanwell HRP-450-48 Power Supply

Nguồn Meanwell HRP-450-48

Tính Năng:

• Universal / Full Range AC Input
• Built-in active PFC function, PF > 0.95
• High efficiency up to 89%
• Withstand 300VAC surge input for 5 seconds
• Protection: Short circuit / Overload / Over voltage / Over temperature
• Built-in constant current limiting circuit
• Built-in cooling fan ON-OFF control
• Built-in DC OK signal
• Integrated remote sensing function

Thông số chi tiết về sản phẩm

Model		HRP-450-3.3	HRP-450-5	HRP-450-7.5	HRP-450-12	HRP-450-15	HRP-450-24	HRP-450-36	HRP-450-48
OUPUT	DC VOLTAGE	3.3V	5V	7.5V	12V	15V	24V	36V	48V
	RATED CURRENT	90A	90A	60A	37.5A	30A	18.8A	12.5A	9.5A
	CURRENT RANGE	0 ~ 90A	0 ~ 90A	0 ~ 60A	0 ~ 37.5A	0 ~ 30A	0 ~ 18.8A	0 ~ 12.5A	0 ~ 9.5A
	RATED POWER	297W	450W	450W	450W	450W	451.2W	450W	456W
	RIPPLE & NOISE (max.) Note.2	80mVp-p	80mVp-p	100mVp-p	120mVp-p	150mVp-p	150mVp-p	240mVp-p	240mVp-p
	VOLTAGE ADJ. RANGE	2.8 ~ 3.8V	4.3 ~ 5.8V	6.8 ~ 9V	10.2~ 13.8V	13.5 ~ 18V	21.6 ~ 28.8V	28.8 ~ 39.6V	40.8 ~ 55.2V
	VOLTAGE TOLERANCE Note.3	±2.0%	±2.0%	±2.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
	LOAD REGULATION	±1.0%	±1.0%	±1.0%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	SETUP, RISE TIME	1000ms, 100ms/230VAC 2500ms, 100ms/115VAC at full load
	HOLD UP TIME (Typ.)	16ms/230VAC 16ms/115VAC at full load
INPUT	VOLTAGE RANGE	85 ~ 264VAC 120 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF>0.95/230VAC PF>0.99/115VAC at full load
	EFFICIENCY (Typ.)	80%	83%	87%	88%	89%	88%	89%	90%
	AC CURRENT (Typ.)	5A/115VAC 2.4A/230VAC
	INRUSH CURRENT (Typ.)	35A/115VAC 70A/230VAC
	LEAKAGE CURRENT	<1.5mA / 240VAC
