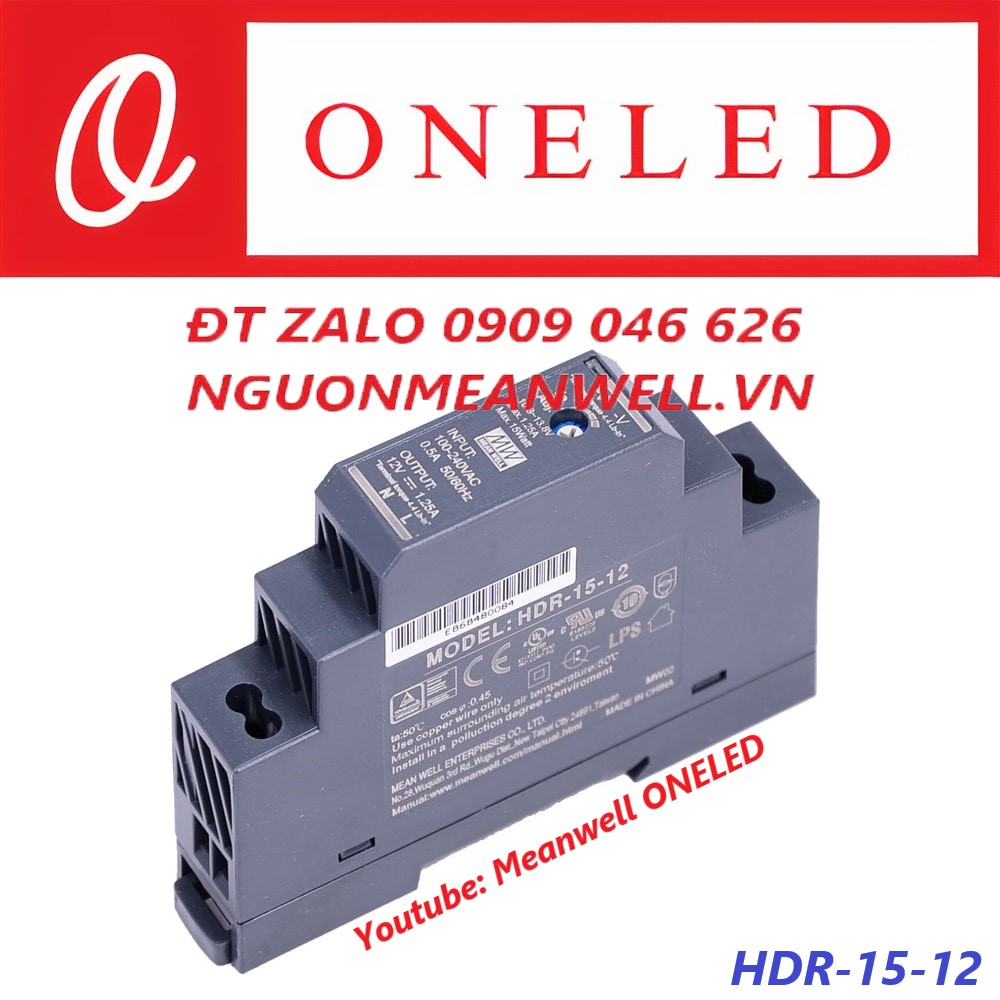

Meanwell HDR-15-12 Power Supply

Nguồn Meanwell HDR-15-12

Tính Năng:

• Ultra slim design with 17.5mm(1SU)width
• Universal input 85~264VAC(277VAC operational)
• No load power consumption<0.3W
•isolation class II
• Pass LPS (Limited power source)
• DC output voltage adjustable
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection (working temperature:-30~+70⁰C)
• DIN rail TS-35/7.5 or 15 mountable
• Over Voltage category III
• LED indicator for power on

Các Ứng Dụng:

• Household control system
•Building automation
• Industrial control system
• Factory automation
• Electro-mechanical apparatus

Mô Tả về sản phẩm

HDR-15 is one economical slim 15W DIN Rail power supply series,adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 32mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC operational) and confirms to EN61000-3-2, the norm the European Union regulates for harmonic current.
HDR-15 is designed with metal housing that enhances the unit’s power dissipation. With working efficiency up to 87%, the entire series can operate the ambient temperature between -30⁰C and 70⁰C under air convection. The complete protection functions and relevant certificates for industrial control apparatus (IEC60950-1,UL508,UL60950-1, EN62368-2-16) make HDR-15 a very competitive power supply solution for household and industrial application.

Thông số chi tiết về sản phẩm

Model		HDR-15-5	HDR-15-12	HDR-15-15	HDR-15-24	HDR-15-48
OUPUT	DC VOLTAGE	5V	12V	15V	24V	48V
	RATED CURRENT	2.4A	1.25A	1A	0.63A	0.32A
	CURRENT RANGE	0 ~ 2.4A	0 ~ 1.25A	0 ~ 1A	0 ~ 0.63A	0 ~ 0.32A
	RATED POWER	12W	15W	15W	15.2W	15.4W
	RIPPLE & NOISE (max.) Note.2	80mVp-p	120mVp-p	120mVp-p	150mVp-p	240mVp-p
	VOLTAGE ADJ. RANGE	4.5 ~ 5.5V	10.8 ~ 13.8V	13.5 ~ 18V	21.6 ~ 29V	43.2 ~ 55.2V
	VOLTAGE TOLERANCE Note.3	±2.0%	±1.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	LOAD REGULATION	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	SETUP, RISE TIME	2000ms, 80ms/230VAC 2000ms,80ms/115VAC at full load
	HOLD UP TIME (Typ.)	30ms/230VAC 12ms/115VAC at full load
INPUT	VOLTAGE RANGE Note.4	85 ~ 264VAC (277VAC operational) 120 ~ 370VDC (390VDC operational)
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	80.00%	85%	85.50%	86%	87.00%
	AC CURRENT (Typ.)	0.5A/115VAC 0.25A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 25A/15VAC 45A/230VAC
