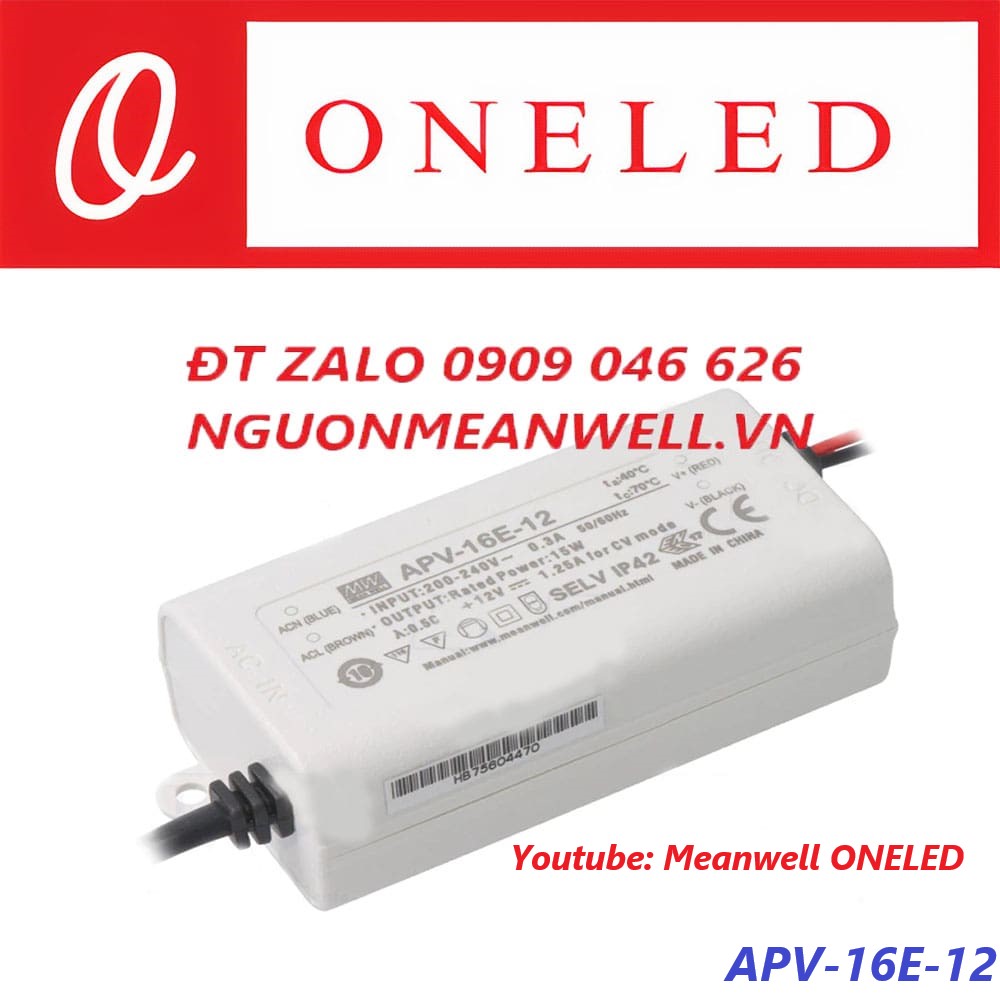

Meanwell APV-16E-12 Power Supply

Nguồn Meanwell APV-16E-12

Tính Năng:

• Constant current design
• Protections: Short circuit / Overload / Over voltage
• Fully isolated plastic case
• Cooling by free air convection
• Small and compact size
• Class II power unit, no FG
• No load power consumption <0.5W
• IP42 design
• Suitable for LED lighting and moving sign applications
• 100% full load burn-in test
• Low cost / High reliability

Thông số chi tiết về sản phẩm

Model		APV-16E-5	APV-16E-12	APV-16E-15	APV-16E-24
OUTPUT	DC VOLTAGE	5V	12V	15V	24V
	RATED CURRENT	2.6A	1.25A	1A	0.67A
	CURRENT RANGE	0 ~ 2.6A	0 ~ 1.25A	0 ~ 1A	0 ~ 0.67A
	RATED POWER	13W	15W	15W	16.08W
	RIPPLE & NOISE (max.) Note.2	100mVp-p	120mVp-p	120mVp-p	150mVp-p
	VOLTAGE TOLERANCE Note.3	±5.0%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±2.0%
	SETUP, RISE TIME	500ms, 30ms/230VAC at full load
	HOLD UP TIME (Typ.)	20ms/230VAC at full load
INPUT	VOLTAGE RANGE Note.4	180 ~ 264VAC 254 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR	PF>0.5/230VAC at full load
	EFFICIENCY (Typ.)	75.00%	79%	80.00%	82.00%
	AC CURRENT (Typ.)	0.3A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 50A(twidth=120µs measured at 50% lpeak) at 230VAC
	MAX. No. of PSUs on 16A CIRCUIT BREAKER	13 units (circuit breaker of type B) / 22 units (circuit breaker of type C) at 230VAC

	PROTECTION	OVER LOAD	Above 105% rated ouput power
Protection type : Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE			5.75 ~ 6.75V	13.8 ~ 16V	17.5 ~ 21V	27.6 ~ 32.4V
		Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT		WORKING TEMP.	30 ~ +70⁰C (Refer to “Derating curve”)
	WORKING HUMIDITY	20 ~ 90% RH non- condensing
	STORAGE TEMP., HUMIDITY	40 ~ +80⁰C, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/⁰C (0 ~ 50⁰C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	ENEC EN61347-1, EN61347-2-13, EN62368, EAC TP TC 004, IP42 approved;
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC
	ISOLATION RESISTANCE	I/P-O/P>100M Ohms / 500VDC / 25⁰C / 70% RH
	EMC EMISSION	Compliance to EN55015, EN61000-3-2 Class A, EN61000-3-3, EAC TP TC 020
	EMC IMMUNITY	Compliance to EN61547, EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), criteria A, EAC TP TC 020
OTHERS	MTBF	1145.7K hrs min. MIL-HDBK-217F(25⁰C)
	DIMENSION	774029mm (LWH)
	PACKING	0.1Kg; 120pcs/14Kg/1.06CUFT
